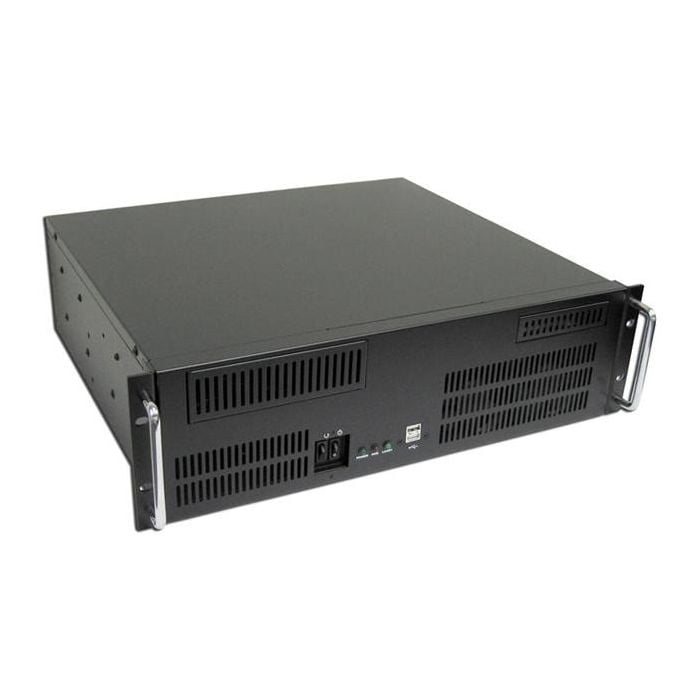

Intel Coffee Lake 3U Short Depth Rackmount PC

$971.00
SKU
3U-S-MS98K9-A

ATX with 8th Gen Intel® Coffee Lake-S Xeon®, Core™ i7/i5/i3, Pentium®, Celeron® Processor & Intel® C246 for High-Performance Solution

  • Intel® 8th Gen Coffee Lake-S Series with C246
  • 4 DDR4 2666 MHz ECC/non-ECC UDIMM slots up to 64GB
  • Triple independent displays: VGA, 2DP, HDMI™
  • 3 GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 3) or 2 PCIe x8 (Gen3) or 1 PCIe x8 (Gen3) & 2 PCIe x4 (Gen3), 2 PCIe x4 (Gen3), 2 PCIe x1 (Gen3), 1 M.2 E key slots
  • M.2 M key, 6 SATA 3.0 for storage
  • SATA RAID 0/1/5/10
  • 6 USB 3.2 Gen 2, 7 USB 2.0, 10 COM (2 RS-485), GPIO, LPT, PS/2, Audio, S/PDIF, 3 System FAN
  • Onboard TPM 2.0
Component Qty:
Component Qty:
Component Qty:
Component Qty:
  • Processor
    • 8th Gen Intel® Desktop Coffee Lake-S Xeon® /i7/i5/i3/ Pentium® /Celeron® Series Processor, Max 95W
  • Chipset Intel® C246 Express
  • Memory
    • Socket 4 x 288-pin UDIMM
    • Max. Capacity Up to 64 GB
  • Graphic
    • Controller Intel® UHD Graphics
    • VGA 1
    • DisplayPort 2
    • Multiple Display 3 independent displays
  • Display Interface
    • VGA up to 1920 x 1200 @60Hz
    • HDMI™ up to 4096 x 2160 @24Hz
    • DP up to 4096 x 2304 @60Hz
  • Ethernet Controller
    • 1 x Intel® I219-LM GbE LAN PHY
    • 2 x Intel® I210-AT GbE LAN
  • TPM Controller Infineon SLB 9665TT2.0
  • I/O Interface
    • PS/2 1 x PS/2 port by Y-cable for keyboard and mouse
    • USB 7 x USB 2.0 (2 x rear, 5 x internal with one Vertical Type-A)
    • 6 x USB 3.2 Gen 2 (rear)
    • Parallel Yes
    • Serial 10 x COM ports (internal)
      • COM1~2: RS-232/422/485, Ring/0V/5V/12V, Autoflow Control
      • COM3~10: RS-232, 0V/5V/12V 10 x COM ports (internal)
  • Expansion Slot
    • PCIe x16 3 (Signal configred as 1 PCIe x16 or 2 PCIe x8 or 1 PCIe x8 + 2 PCIe x4)
    • PCIe x4 2 (PCIe x16 Slot Type; 1*PCIe x4 NVMe)
    • PCIe x1 2
  • M.2
    • 1 x M key (PCIe x4 NVMe, SATA 3.0), 2242/2260/2280
    • 1 x E key (PCIe x1, USB 2.0), 2230
  • SATA
    • 6 x SATA 3.0 (RAID 0/1/5/10, SATA port 6 share with M.2 M Key)
  • Environment
    • Operating Temperature -10 ~ 60°C
  • Certification
    • CE, FCC Class B, BSMI, RCM, VCCI
  • OS Support
    • Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
    • Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
    • Linux (Support by request)

Processor(s): Intel® i3 - 8100 or i3-9100 (LGA1151) 4 Core Processor 3.6GHz/6MB Cache
CPU Cooling: Standard/OEM CPU Cooler
Memory - DDR4: 8 GB DDR4 Unbuffered NON-ECC (1X8GB) (Samsung Chips)
1st Hard Drive: 1TB SATA III 7200RPM (PMR)
RAID: RAID Not Selected
Optical Drive: DVD/RW SATA
Video Card: Integrated Video
Power Supply: 400 Watt Flex ATX Power Supply
Operating System: None
Warranty - Computer: 2 Year Warranty (excludes video cards & accessories)
System Build - Standard / Priority: Standard System Build - Configure system within 10 business days once parts are available..
