Industrial Grade System Board With Operating Temp. Range: 0° C to 60° C


Key Features

  1. 8th/9th Generation Intel® Desktop Coffee Lake-S Xeon®/i7/i5/i3/Pentium®/Celeron® Series Precessor, Max 95W
  2. Up to 64GB DDR4 ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

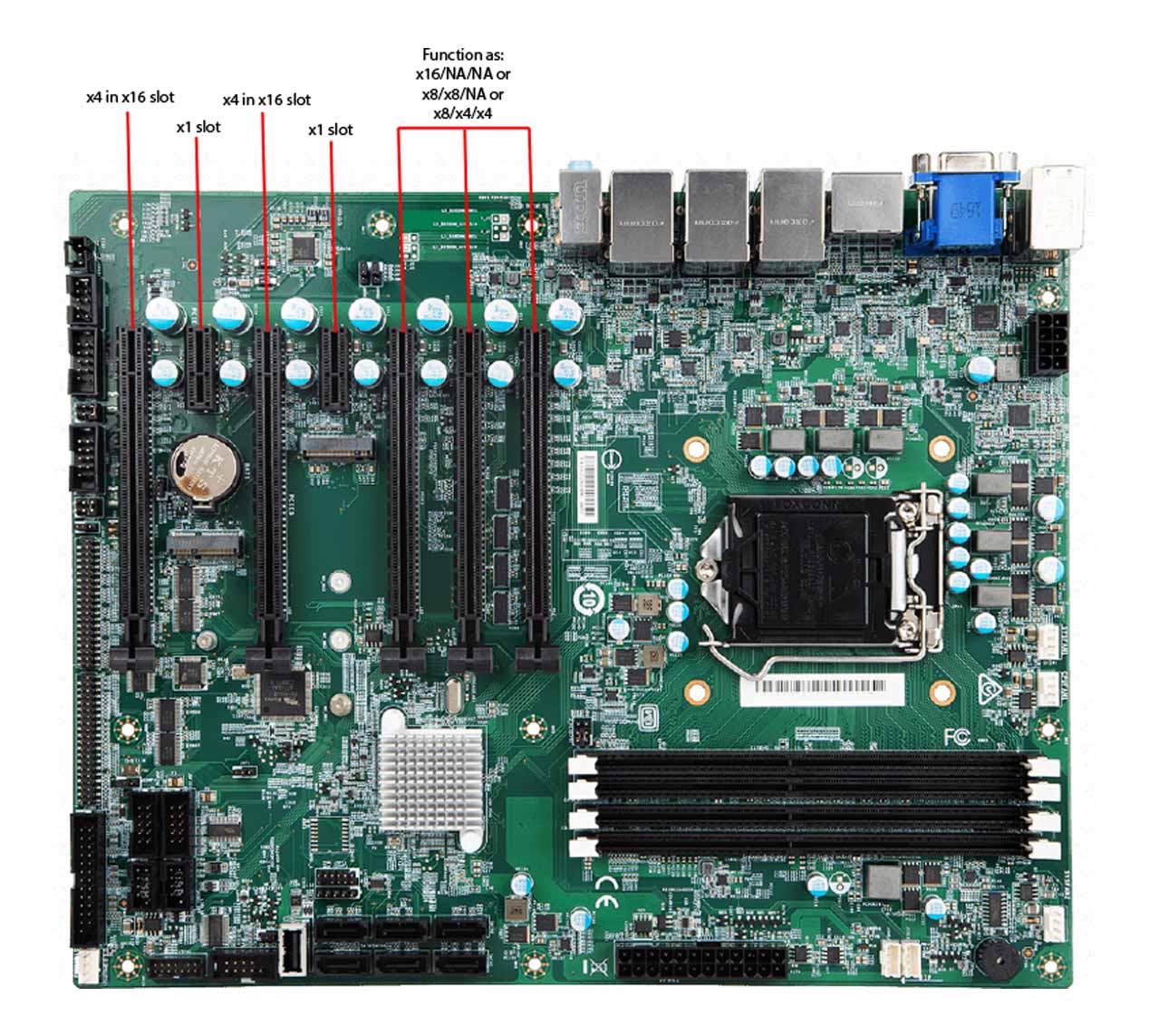

  3. 3 PCI-E x16 Slots (Signal function as 1 PCIe x16 or 2 PCIe x8 or 1PCIe x8 + 2 PCIe x4)
    2 PCIe x4 (in x16 slot)
    2 PCIe x1
    M.2 Interface: PCI-E x4
    M.2 Form Factor: 2242/2260/2280
    M.2 Key: M-Key
  4. Intel® C24 6 chipset
  5. Three GbE LAN
  6. Win 10 support only

Links & Resources

Specifications
Model
MS-98K9
  • Industrial ATX Motherboard

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.5cm x 24.4cm)

Processor/Cache
CPU
  • 8th/9th Generation Intel® Desktop Coffee Lake-S Xeon®/i7/i5/i3/Pentium®/Celeron® Series Precessor
  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

System Memory
Memory Capacity
  • Up to 64GB DDR4 ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
  • 2666/2400/2133/1866/1600MHz ECC/non-ECC DDR4 SDRAM 72-bit 288-pin
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C246 Express PCH
SATA
  • 6 SATA3 (6 Gbps) ports
  • Support RAID 0/1/5/10
Network Controllers
  • Three GbE LAN
Video
  • 1x DP (Max.4096 x 2304 @60Hz)
  • 1x VGA (Max.1920 x 1200 @60Hz)
  • 1x HDMI (Max. 4096 x 2160 @24Hz)

Input / Output
SATA
  • 6 SATA3 (6Gbps) port
M.2
  • 1 - M Key PCIe x4 NVMe, shares with SATA Port 6
LAN
  • 3 RJ45 Gigabit Ethernet LAN ports
USB
  • 7 USB 2.0 ports (2 rear + 5 via headers)
  • 6 USB 3.1 ports (via rear)
Serial Port / Header
  • 10 COM Port (via headers)
  • COM 1-2: RS-232/422/485, Ring/0V/5V/12V
  • COM 3-10: RS-232, 0V/5V/12V
TPM
  • 1 TPM Header
GPIO
  • 16-bits (8 x GPI: 8 x GPO), 5V
Parallel Port
  • 1 header
PS/2
  • 1 PS/2 Port by Y-cable Keyboard/Mouse
Expansion Slots
PCI-E
  • 3 PCI-E x16 (in x16 slot)
    Signal configured as 1 PCIe x16 or 2 PCIe x8 or 1PCIe x8 + 2 PCIe x4
  • 2 PCIe x4 (in x16 slot)
  • 2 PCIe x1
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2280
  • Key: M-Key

System BIOS
BIOS Type
  • AMI UEFI

Management
Software
  • AMT, vPro
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
FAN
  • 3x 4-pin fan headers (up to 3 fans), Fan speed control, PWM fan speed control
LED
  • N/A
Other Features
  • ATX Power connector, Chassis intrusion header

Operating Environment
Operating Temperature Range
  • -10°C - 60°C (14°F - 140°F)
Non-Operating Temperature Range
  • -20°C - 80°C (-4°F - 176°F)
Operating Relative Humidity Range
  • 10% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

MS-98K9
