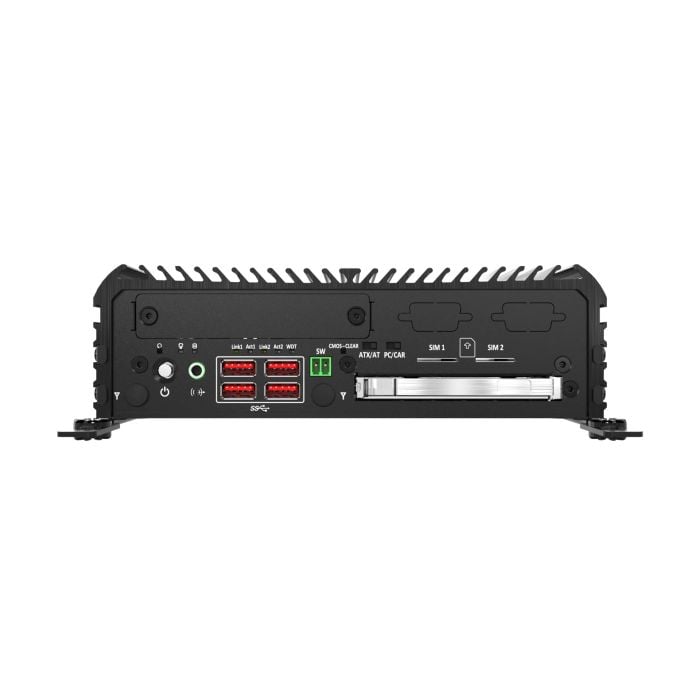

Intel Coffee Lake Mini Fanless Embedded Computer
$1,200.00
SKU
RCO-3000-CFL-A
Key Features
- Support 9th Gen Intel® i5-9500TE CFL-R S Processor (LGA 1151, 35W TDP)
- Intel® Q370 Chipset
- Triple Independent Display by 1x DVI-I and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x Full-size Mini PCIe (shared by 1x mSATA), and 2x SIM socket
- 2x 2.5” SATA HDD Bay with RAID 0, 1, 5 support, 1x mSATA (Shared by 1x Mini PCIe)
- TPM 2.0 Supported
- Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz
- Intel® Q370 Express Chipset
- LAN Chipset
- GbE1: Intel I219LM (Support Wake-on-LAN and PXE)
- GbE2: Intel I210-AT (Support Wake-on-LAN and PXE)
- System Memory
- 2x 260-Pin DDR4 2400/2666MHz SODIMM. Max. up to 64GB (Un-buffered and Non-ECC)
- Graphics Intel® UHD Graphics 610/630
- TPM 2.0
- Display
- 2x DisplayPort, support resolution 4096 x 2304
- 1x DVI-I, support resolution 1920 x 1200
- mSATA
- 1x mSATA (shared by 1x Mini PCIe)
- SSD/HDD
- 1x Internal 2.5" SATA HDD Bay (support H=9mm)
- 1x Hotswap 2.5" SATA HDD Bay (support H=7mm)
- Support RAID 0, 1, 5
- Mini PCIe
- 2x Full-size Mini PCIe (1x Shared with mSATA)
- Expansion Modules (Optional)
- 4-port GbE module with Intel® I350-AT4 Chipset, RJ-45 or M12 connector
- 4-Port USB with Renesas uPD720201K8 host controller
- 2-Port RJ45 10GbE with Intel X710-AT2 Chipset
- COM
- 3x RS-232/422/485 ; 2x RS-232/422/485 (internal)
- USB
- 4x USB 3.2 Gen 2 (10Gbps)
- 4x USB 2.0 (2x Internal)
- Operating System
- Windows 10
- Linux kernel 5.X
- Power Adapter
- Optional AC/DC 24V/11.67A, 280W
- Includes AC/DC 24V/9.2A, 220W
- 9~48VDC
- Power Connector
- 3-pin Terminal Block
- Operating Temperature
- -25°C to 60°C (35W CPU)
- Mounting Options
- Wall Mounting / DIN Rail (Optional)
CPU: Intel i5-9500TE 2.2GHZ/3.6GHZ/9MB Cache/6-Core 35W Processor
Memory: 8GB DDR4 SODIMM Unbuffered/Non-ECC
Hard Drive: 250GB Solid State Drive, 2.5" SATA3
Operating System: None
