High Performance
Up To 64Gb DDR4


Key Features
  1. 8th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor ., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
  2. Intel® Q370
  3. Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots
  4. 2 PCI-E 3.0 x16(x16/NA or x8/x8), PCI-E x4, PCI-E x1, 2 PCI
  5. 1 VGA port, 1 DVI-D port, 1 HDMI port, 1 DP (DisplayPort) port
    3 Independent Displays
  6. Q370 controller for 5 SATA3 ports;RAID 0,1,5,10
  7. Single LAN with Intel® I211AT Controller
    Single LAN with Intel® I219LM Controller
  8. Watchdog Timer

Links & Resources
image image

image image image image
Product SKUs
MBJNAF791
  • JNAF791-Q370

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (305cm x 244cm)

Processor/Cache
CPU
  • 8th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor .
  • Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
Cores / Cache
  • 6 cores, 12 threads / 12MB cache

System Memory
Memory Capacity
  • Up to 64GB Unbuffered non-ECC U-DIMM, DDR4-2666MHz, in 2 DIMM slots
Memory Type
  • N/A
DIMM Sizes
  • 16GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® Q370
SATA
  • Q370 controller for 5 SATA3 ports;RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® Ethernet Controller I211AT
    Single LAN with Intel® Ehternet controller
    I219LM
Video
  • 1x DP 1.2 (Max.4096 x 2304 @60Hz)
  • 1x HDMI (Max. 4096 x 2160 @30Hz)
  • 1x DVI-D (Max. 1920 x 1080 @60Hz)
  • 1x VGA (1920 X 1200 @60Hz)

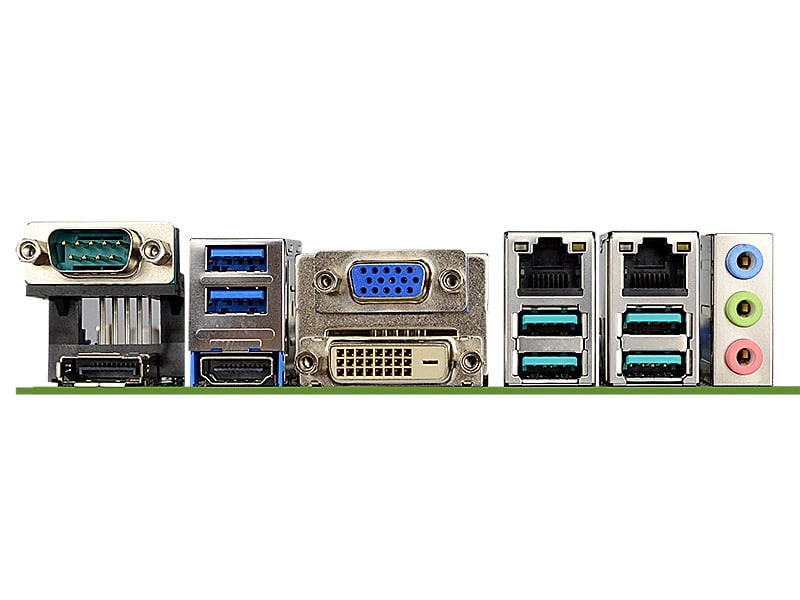

Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • Rear: 4 USB 3.1 ports (Gen 2), 2 USB 3.1 ports (Gen 1)
  • Internal Header: 2 USB 3.1 (Gen 1), 4 USB 2.0
Video Output
  • 1 VGA (1920x1200), 1 DVI-D. 1 HDMI port (4096x2160), 1 DP (DisplayPort) port (4096x2304),
  • 3 Independent Displays
Serial Port / Header
  • 9 COM Ports (1 rear, 8 headers), RS-232/422/485
Audo
  • Realtek® ALC662VD HD
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 2 PCI-E 3.0 x16 (x16/NA, x8/x8), PCI-E x4,PCI-e x1
PCI
  • 2 PCI
M.2
  • M.2 (B/M Key):1 SATA/PCI-E 3.0 x4, support 2242/2260/2280/22110 length;
  • M.2 (AE KEY): PCI-E 3.0 x1,support 2230 length
GPIO
  • 1 (8 bit)

System BIOS
BIOS Type
  • AMI 128 Bit
BIOS Features
  • ACPI

Management
Software
  • AMT, Watchdog
Power Configurations
  • ATX Power connector
  • +12V DC Power Input

PC Health Monitoring
Voltage
  • +1.8V, +3.3V, +5V, +5V standby, 3 -fan status, Chassis intrusion header, HT, VBAT
FAN
  • 3x 4-pin fan headers (up to 3 fans)
Temperature
  • N/A
LED
  • N/A
Other Features
  • 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, RoHS

Operating Environment
Operating Temperature Range
  • 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
  • -20°C ~ 85°C (-4°F ~ 185°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
