Rugged Embedded Computer with Intel N97 Processor

$642.00
SKU
DA-1200

Intel Alder Lake-N Processor N97 Rugged Embedded Computer


PRODUCTS FEATURES

  • Onboard Intel ® Alder Lake-N Processor N97
  • Ultra Compact Size (150 x 105 x 52.3 mm)
  • 1 x DDR5 SO-DIMM Sockets, Supports Up to 4800MHZ, 16GB
  • 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
  • 1 x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
  • Optional CMI modules for I/O expansion
  • Wide Operating Temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1

The palm-sized DA-1200, equipped with an Intel® N97 processor (Alder Lake-N platform), is the smallest and an affordable model in the DIAMOND product line. It inherits the rugged features consistent throughout the Cincoze lineup and has passed or complies with many international certification standards, such as EMC standards in industrial environments (IEC 61000-6-2 and IEC 61000-6-4) and US military shock vibration standards (MIL-STD-810H). The DA-1200 is best for IoT gateway applications in smart manufacturing, smart logistics, and factory automation.

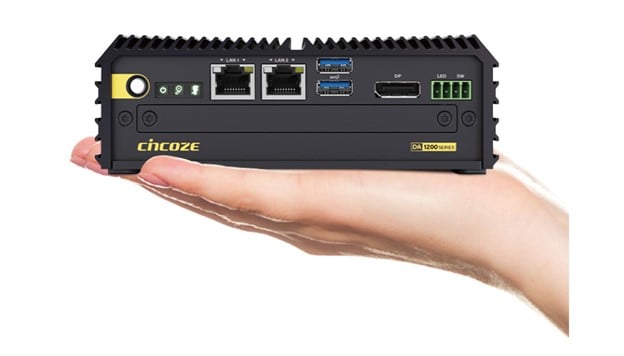

Palm-sized


The DA-1200 measures 150 x 105 x 52.3 mm and can fit in the palm of your hand.


Affordable High Performance


The DA-1200 has an Intel® N97 processor based on the Intel® 7 process and up to 16GB of DDR5 memory, giving it excellent overall performance at a highly competitive price.

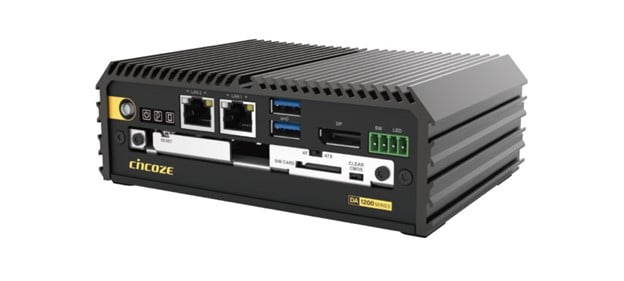

Easy Maintenance


Setup and adjustment of the DA-1200 is quick because key buttons and functions, including the reset switch, clear CMOS switch, AT/ATX switch, and SIM card slot, are all accessible on the front panel maintenance area.

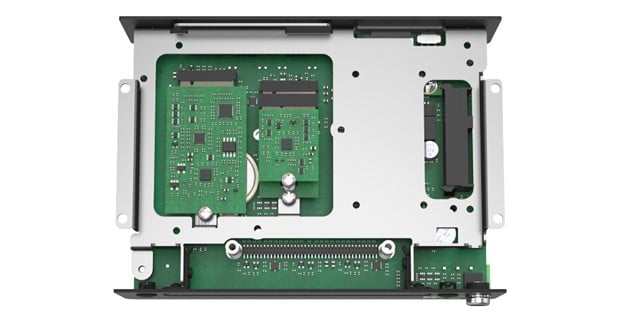

Modular Expansion


The DA-1200 has two M.2 Key B slots (convertible to Key E with an optional M.2 Key B Adapter Card) for wireless cards (5G, Wi-Fi, and GNSS) and storage options that include 2.5″ SSD, half-slim SSD, and M.2 SSD.


  • Processor
    • Onboard Intel® Alder Lake-N Processor N97 Quad Core, up to 3.6 GHz
  • Memory
    • 1x DDR5 SO-DIMM Socket
    • Supports DDR5 4800MHz Memory Up to 16GB (un-buffered and non-ECC)
  • Graphics Engine
    • Integrated Intel® UHD Graphics
    • Maximum Display Output
    • Supports Two Independent Display
    • (Onboard 1x DisplayPort + Optional CMI 1x Display)
    • DP
      • 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications)
      • * Verified maximum resolution: 3840 x 2160 @60Hz
  • I/O
    • LAN    2x 2.5GbE LAN, RJ45
      • GbE1: Intel® I225
      • GbE2: Intel® I225
  • USB
    • 2x 10Gbps USB 3.2 Gen2 x1, Type A
  • Storage
    • SSD/HDD
      • 1x 2.5" SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0)
    • M.2 SSD
      • 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket, Support NVMe SSD (PCIe Gen 3x1) or SATA SSD (SATA 3.0)
      • 1 x M.2 SSD shared by M.2 Key B Type 2242 Socket, Support NVMe SSD (PCIe Gen 3x2)
  • Expansion
    • M.2 Key B Socket
      • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion
      • 1x M.2 Key B Type 2242 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion
  • SIM
    • 1x Front Accessible SIM Socket
  • CMI (Combined Multiple I/O) Interface
    • 1x CMI Interface for optional CMI Module Expansion
  • Clear CMOS Switch
    • 1x Clear CMOS Switch
  • Reset Button
    • 1x Reset Button
  • Instant Reboot
  • Support 0.2sec Instant Reboot Technology
  • Watchdog Timer
  • Software Programmable Supports 256 Levels System Reset
  • Antenna
    • 2x Antenna Holes
  • Power
    • Power Button    1x ATX Power On/Off Button
    • Power Mode Switch    1x AT/ATX Mode Switch
    • Power Input    9 - 48VDC, 3-pin Terminal Block
    • Remote Power On/Off    1x Remote Power On/Off, 2-pin Terminal Block
    • Remote Power LED    1x Remote Power LED, 2-pin Terminal Block
    • Max. Power Consumption
      • OS Idle Mode: 32.83 W
      • Full Loading: 47.04 W
      • Inrush Current (Peak)    4.356 A@12V
  • Physical
    • Dimension ( W x D x H )    150 x 105 x 52.3 mm
    • Weight Information    0.81 kg
    • Mechanical Construction    Extruded Aluminum with Heavy Duty Metal
  • Mounting
    • Wall / Side / DIN-RAIL / VESA Mount
  • Physical Design
    • Fanless Design
    • Cableless Design
    • Jumper-less Design
    • Unibody Design
  • Reliability & Protection
    • Reverse Power Input Protection    Yes
    • Over Voltage Protection
      • Protection Range: 51~58V
      • ​Protection Type: shut down operating voltage, re-power on at the preset level to recover
      • Over Current Protection    15A
      • MTBF    614,831 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
  • Operating System
    • Windows® 11, Windows® 10
  • Environment
    • Operating Temperature    -40°C to 70°C
    • Storage Temperature    -40°C to 70°C
    • Relative Humidity    95% RH @ 70°C (Non-condensing)
    • Shock    MIL-STD-810H
    • Vibration    MIL-STD-810H
  • EMC
    • CE, UKCA, FCC, ICES-003 Class A
    • EN61000-6-4, EN61000-6-2 (24VDC Input Only)
  • EMI
    • CISPR 32 Conducted & Radiated: Class A
    • EN/BS EN 55032 Conducted & Radiated: Class A
    • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
    • EN/BS EN61000-3-3 Voltage fluctuations & flicker
    • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
  • EMS
    • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
    • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
    • EN/IEC 61000-4-6 CS: 10V  (**Compliant with the standard when utilizing shielded ethernet cable.)
    • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
    • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
  • Safety
    • UL, cUL, CB, IEC, EN 62368-1

Memory - DDR5 SODIMM: 8 GB DDR5 SODIMM Unbuffered NON-ECC (1X8GB)

1st Hard Drive: 250GB Solid State Hard Drive, 2.5"

Power Supply: 60W AC/DC Power Supply Included

Operating System: None

Warranty - Computer: 2 Year Warranty (excludes video cards & accessories)

System Build - Standard / Priority: Standard System Build - Configure system within 10 business days once parts are available..

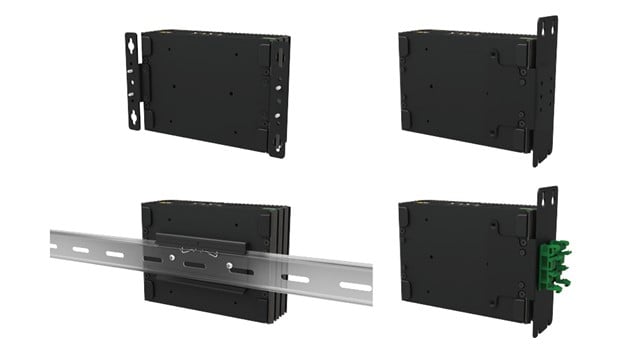

Various Mounting Types


The DA-1200 supports various mounting methods, including wall mount, side mount, and DIN Rail mount, for installation in various applications.
