Rugged Embedded Computer with Intel Pentium N4200 Processor

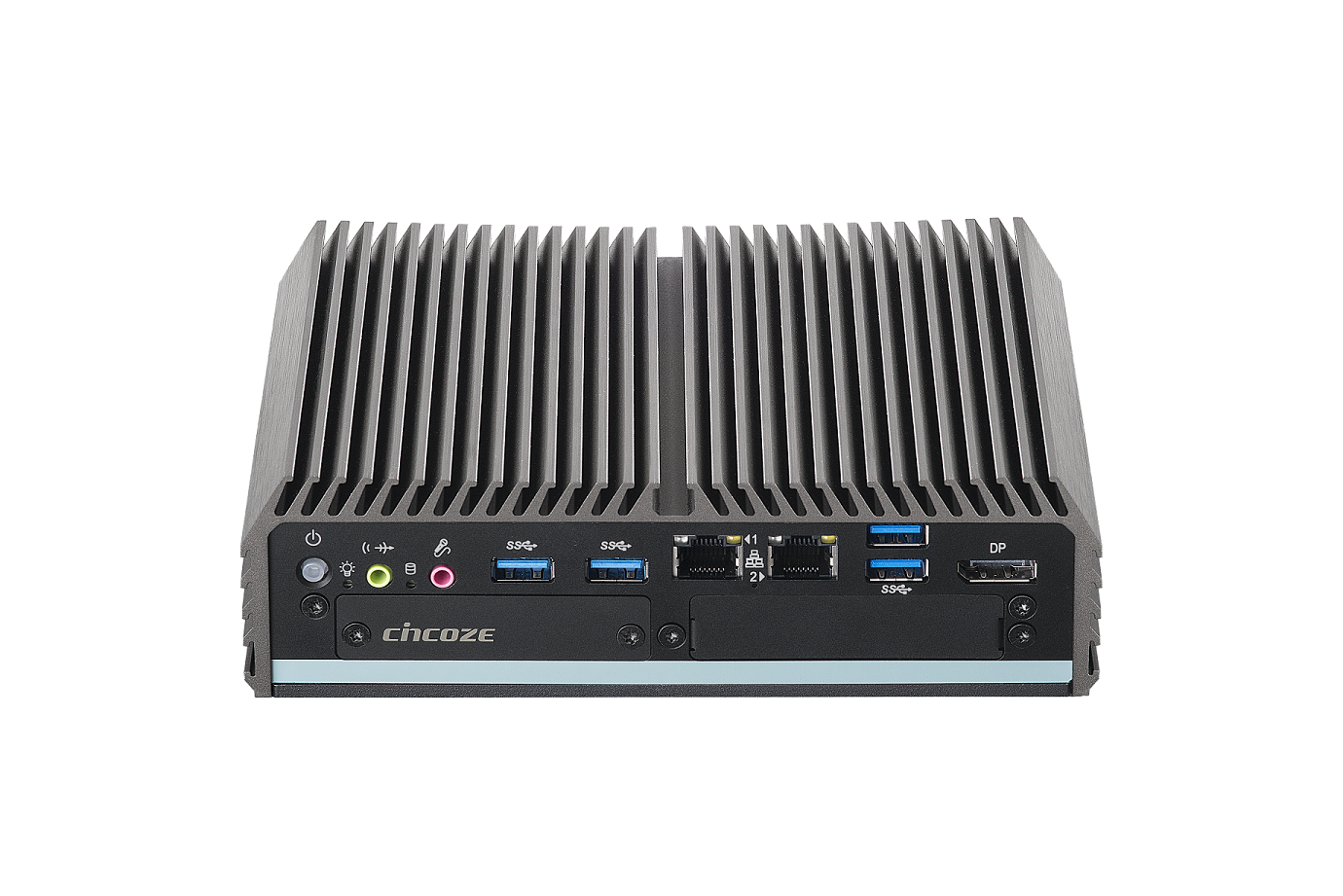

Intel® Pentium® N4200 Processor Compact Fanless Embedded Computer
PRODUCTS FEATURES
- Onboard Intel® Pentium® N4200 Processor
- Supports Triple Independent Display
- Supports CMI Interface for I/O Expandability
- Supports PoE+ and Power Ignition Function (with optional CFM modules)
- 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- 2x Full Size Mini-PCIe Socket, 2x SIM Card Socket
- Compact Size (185 x 131 x 56.5 mm)
- Wide Operating Temperature -40°C to 70°C
- E-Mark (E13, No. 10R-0515075), LVD EN62368-1
Based on Intel® Pentium® N4200 quad-core processor, the DC-1200 is a fanless embedded computer offering an incredible size-performance ratio for the most challenging environments. Despite its compact size, the DC-1200 incorporates extensive connectivities including serial ports, USB 3.0, GbE LAN, full-size Mini-PCIe slot, dual SIM sockets, DVI-D, and DisplayPort. The system also provides 2.5" SATA drive bay and mSATA socket for extensive storage requirements.
Furthermore, it is much easier to utilize Cincoze' ready-to-use CMI and CFM modules for extension of digital I/O, serial ports, power ignition sensing, Power over Ethernet (PoE) even the third output of video for a variety of applications.
Featuring with rigorous industrial protections, wide temperature range, and wide range DC power input, the DC-1200 offers a powerful, expandable computing platform to ensure long-lasting performance and reduce maintenance costs.
- CPU
- Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
- Memory
- DDR3L 1333/1600/1866 MHz (un-buffered and non-ECC)
- Max. Capacity 8 GB
- Socket 1x 204-Pin SO-DIMM
- Display
- Integrated Graphics Integrated Intel® HD Graphics 505 (Pentium® N4200)
- Triple Display Supported Yes (DVI-D, DisplayPort and one output from optional CMI module)
- Integrated Graphics Integrated Intel® HD Graphics 505 (Pentium® N4200)
- Audio Codec Realtek ALC888-GR
- I/O Ports
- DVI-D 1 (1920 x 1080 @60Hz)
- DP 1 (4096 x 2160 @ 60Hz, According to CPU Specifications)
- * Verified maximum resolution: 3840x2160.
- GbE LAN 2 (RJ45, Intel® I210 Supports WoL, Teaming, Jumbo Frame & PXE)
- USB 3.2 Gen1 4
- COM Port 2 (DB9, RS-232/422/485 with Auto Flow Control (Supports 5V/12V))
- Line-out 1
- Mic-in 1
- ATX Power On/Off Button 1
- AT/ATX Mode Switch 1
- Clear CMOS Switch 1
- Remote Power On/Off Connector 1
- Ignition DIP Switch 1 (12V/24V, need to work with CFM module)
- Storage
- 2.5” HDD/SSD Drive Bay 1 (SATA 3.0)
- mSATA 1 (SATA 3.0, Shared by Mini-PCIe Socket)
- Expansion
- Mini-PCIe Socket 2 (Full-size)
- SIM Socket 2 (for Signal Redundancy)
- Control Function Module (CFM) Interface 2
- Combined Multiple I/O (CMI) Interface 2
- Antenna Holes 2
- Other Functions
- Watchdog Timer Software Programmable Supports 256 Levels System Reset
- Supports Instant Reboot Technology 0.2 sec
- Power Supply Voltage 9~48VDC
- Power Connector 1x 3-pin Terminal Block
- Power Adaptor Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional)
- Physical
- Dimension (WxDxH) 185 x 131 x 56.5 mm
- Weight 1.42kg
- Construction Extruded Aluminum with Heavy Duty Metal
- Unibody Chassis Yes
- Fanless Design Yes
- Jumper-less Design Yes
- Cable-less Design Yes
- Mounting Wall / VESA / Din Rail (Optional: Side + Din Rail Mounting Kit)
- Protection
- Reverse Power Input Protection Yes
- Over Voltage Protection Protection Range: 51~58V
- Protection Type: shut down operating voltage, re-power on at the preset level to recover
- Over Current Protection 15A
- Operating System Windows® 10
- Environment
- Operating Temperature -40°C to 70°C
- Storage Temperature -40°C to 85°C
- Relative Humidity 95%RH @ 70°C (non-Condensing)
- Shock Operating, 50 Grms, Half-sine 11 ms Duration
- * w/ SSD, according to IEC60068-2-27
- Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
- * w/ SSD, according to IEC60068-2-64
- MTBF 479,119Hours
- EMC
- CE, UKCA, FCC, ICES-003 Class A
- E-mark
- EMI
- CISPR 32 Conducted & Radiated: Class A
- EN/BS EN 55032 Conducted & Radiated: Class A
- EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
- EN/BS EN61000-3-3 Voltage fluctuations & flicker
- FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
- EMS
- EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
- EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
- EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
- EN/IEC 61000-4-6 CS: 3V
- EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
- EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
- Safety
- LVD IEC/EN 62368-1
