Cincoze Intel Pentium or Celeron Processor Embedded Computer
Cincoze Intel® Pentium® N4200 / Celeron® N3350 Processor Affordable Fanless Embedded Computer
PRODUCTS FEATURES
- Onboard Intel® Pentium® N4200 / Celeron® N3350 Processor
- Supports Triple Independent Display
- Supports PoE+ Function (with optional CFM module)
- Supports CMI Interface for I/O Expandability
- 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- 2x Full Size Mini-PCIe Socket, 1x SIM Card Socket
- Ultra Compact Size (150 x 105 x 52.3 mm)
- Wide Operating Temperature -40°C to 70°C
- Safety: UL, cUL, CB, IEC/EN62368-1

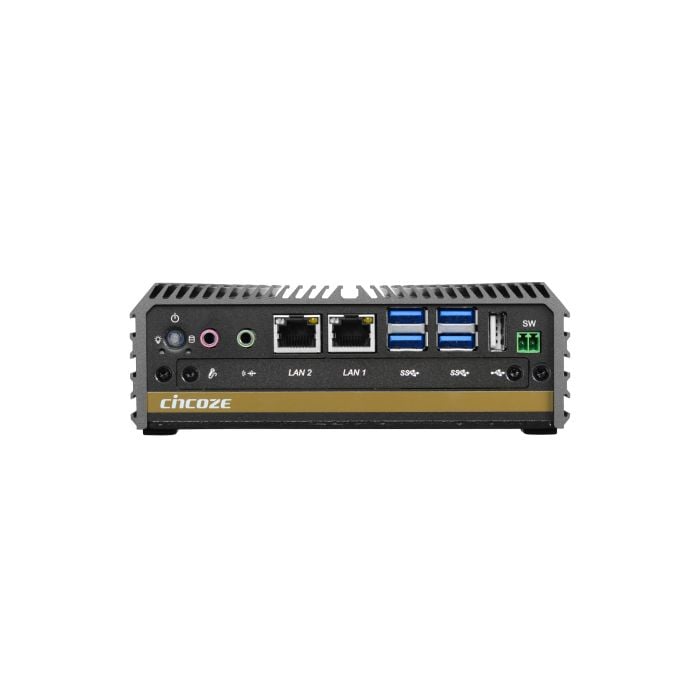

Cincoze DA-1100 affordable fanless embedded computer is based on the Intel® Pentium® N4200 / Celeron® N3350 processor. This mainstream Intel® SoC (Apollo Lake) integrates the Intel® Gen 9 graphics architecture with triple display support in 4K/2K UHD resolution. DA-1100 supports both Combined Multiple I/O (CMI) and Control Function Module (CFM) which are specially designed for flexible I/O and function expandabilities, such as COM ports, optical isolated digital I/O, LPT/PS2, HDMI, DisplayPort, DVI-D, VGA, and Power over Ethernet (PoE).
Leveraging a reliable fanless and durable cable-free design in an ultra-compact aluminum housing, DA-1100 is ideally for deployment in space-constrained place and continuous operation under harsh environments.
- CPU
- Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
- Intel® Celeron® N3350 Dual Core Processor, up to 2.40 GHz
- Memory
- DDR3L 1333/1600/1866 MHz un-buffered and non-ECC Memory (supports up to 1600 MHz)
- Max. Capacity 8 GB
- Socket 1x 204-Pin SO-DIMM
- Display
- Integrated Intel® HD Graphics 505 (Pentium® N4200)
- Integrated Intel® HD Graphics 500 ( Celeron® N3350)
- Triple Display Supported (DVI-D + VGA from DVI-I, one output from optional CMI module)
- I/O Ports
- DVI-I 1 (1920 x 1080 @60Hz)
- GbE LAN 2 (RJ45, Intel® I210 Supports WoL, Teaming, Jumbo Frame & PXE)
- USB
- 4x 5Gbps USB 3.2 Gen1, Type A
- 1x 480Mbps USB 2.0, Type A
- COM Port 2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control)
- Storage
- SATA Drive Bay 1x 2.5" HDD/SSD or 1x Half-Slim SSD (SATA 3.0)
- mSATA 1 (SATA 3.0, Shared by Mini-PCIe Socket)
- Expansion
- Mini-PCIe Socket 2 (Full-size)
- SIM Socket 1
- Control Function Module (CFM) Interface 1
- Combined Multiple I/O (CMI) Interface 1
- Other Functions
- Watchdog Timer Software Programmable Supports 256 Levels System Reset
- Supports Instant Reboot Technology 0.2 sec
- Power Requirement
- Power Type AT / ATX
- Power Supply Voltage 9~48VDC
- Power Connector 1x 3-pin Terminal Block
- Power Adaptor Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional)
- Physical
- Dimension (WxDxH) 150 x 105 x 52.3 mm
- Weight 0.87kg
- Construction Extruded Aluminum with Heavy Duty Metal
- Mounting Wall / VESA (Optional DIN-Rail/Side Mounting)
- Fanless Design Yes
- Jumper-less Design Yes
- Cable-less Design Yes
- Protection Reverse Power Input Protection Yes
- Over Voltage Protection
- Protection Range: 51~58V
- Protection Type: shut down operating voltage, re-power on at the preset level to recover
- Over Current Protection 20A
- Operating System
- Windows Windows® 10
- Environment
- Operating Temperature -40°C to 70°C
- * With extended temperature peripherals; Ambient with air flow
- * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
- Storage Temperature -40°C to 85°C
- Relative Humidity 95%RH @ 70°C (non-Condensing)
- Operating Temperature -40°C to 70°C
- Shock
- Operating, 50 Grms, Half-sine 11 ms Duration
- * w/ SSD, according to IEC60068-2-27
- Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
- * w/ SSD, according to IEC60068-2-64
- Operating, 50 Grms, Half-sine 11 ms Duration
- MTBF 632,353 Hours
- EMC
- CE, UKCA, FCC, ICES-003 Class A
- EMI
- CISPR 32 Conducted & Radiated: Class A
- EN/BS EN 55032 Conducted & Radiated: Class A
- EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
- EN/BS EN61000-3-3 Voltage fluctuations & flicker
- FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
- EMS
- EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
- EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
- EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
- EN/IEC 61000-4-6 CS: 3V
- EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
- EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
- Safety
- UL, cUL, CB, IEC/EN 62368-1
