Intel Alder Lake-S ITX System

Intel® LGA1700 12/13/14th Gen Socket Processor (Formerly Alder Lake-S, TDP 35W)

Intel® Q670E

• 2 x DDR5 5600MT/s SO-DIMM, up to 64GB

Display Controller

• Intel® UHD Graphics
  • DP    1 x DP 1.4a (Max Resolution: 8K@60Hz)
  • HDMI®    1 x HDMI® 2.0b (Max Resolution: 4096 x 2160@60Hz)
  • VGA    1 x VGA (Max Resolution: 1920 x 1080 @60Hz)
• MULTIPLE DISPLAY    Support 3 Displays

• 1 x RJ45 for Intel® I219-LM GbE
• 1 x RJ45 for Intel® I226-V 2.5GbE

• Watchdog Timer
  • 255-level Watchdog Timer
• Smart Fan Yes

Intel® PTT (Integrated fTPM) & TPM 2.0 (dTPM Optional)

• REAR PANEL I/O
  • 6 x USB 3.2 Gen 2
  • 1 x HDMI®
  • 1 x DP
  • 1 x VGA
  • 2 x RJ45
  • 1 x RS-232/422/485
  • 5 x RS-232
  • 1 x AC-in
  • 4 x Antenna Holes
  • 1 x Audio (Line-in, Line out, MIC)

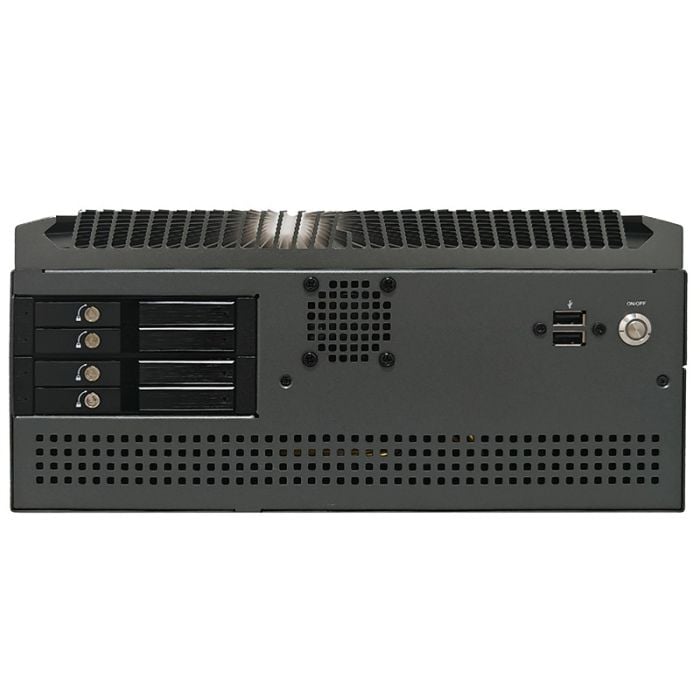

• FRONT PANEL I/O
  • 2 x USB 2.0
  • 1 x Power Button
  • 1 x Power LED

• PCIe
  • 1 x PCI Express x16 (Gen 4)
  • Max support 135 * 285mm Expansion card
• M.2
  • 1 x B-Key 3042 (PCIe x1/USB3.2) support 4G/5G module
  • 1 x E-Key 2230 (USB 2.0/PCIe Gen 3 x1) support CNVio
  • 1 x M-Key 2280 (PCIe Gen 3 x4 interface) support NVMe
  • 1 x M-Key 2242 (PCIe Gen 4 x4/SATA interface) support NVMe

• 4 x 2.5” HDD Tray (support Hot plug) SATAIII
• RAID    SATA RAID 0, 1, 5, 10

• OPERATING TEMPERATURE
  • -10°C ~ 60°C (14°F ~ 140°F)
• STORAGE TEMPERATURE
  • -20°C ~ 70°C (-4°F ~ 158°F)
• OPERATING HUMIDITY
  • 10 ~ 95% @ 40°C, Non-condensing

• CE/FCC Class A
• ESG DECLARATION    EU RoHS
• China RoHS
• ErP

• Windows® 10 (64bit)
• Windows® 11 (64bit)
• Linux
