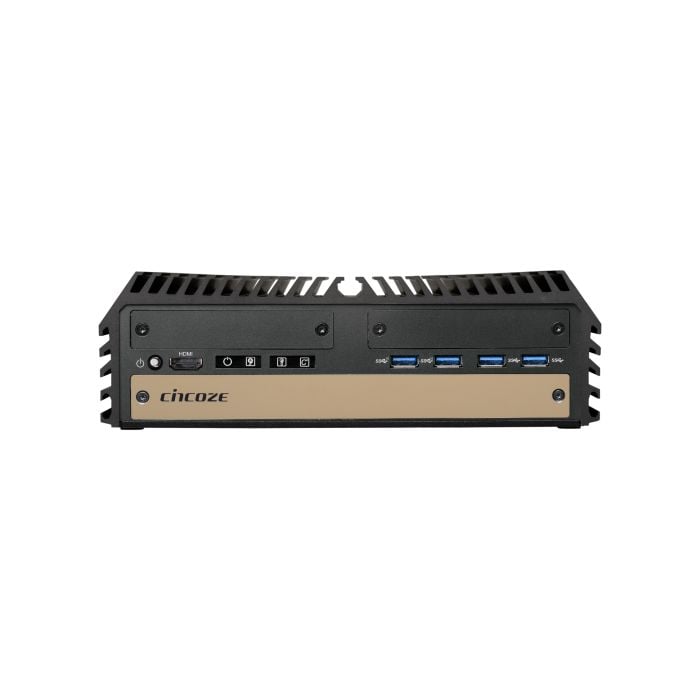

Cincoze 8th/9th Generation Intel® Rugged Industrial Embedded Computer

$885.00

SKU

DX-1100

Cincoze 9/8th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation

PRODUCTS FEATURES

Supports 9/8th Gen Intel® Xeon® and Core™ Octa/Hexa-core Processor
Triple Independent Display with 4K/2K UHD Resolution (HDMI / DP / DVI-I)
2x 2.5" Hot Swap SATA HDD/SSD Tray, 3x mSATA Socket
2x USB 3.1 (10Gb/s) for Ultimate Data-transfer Speed
1x M.2 E Key Socket (CNVi), 3x Full-size Mini-PCIe Socket, 1x SIM Card Socket
upports CMI Interface for I/O Expandability
Supports PoE+ and Power Ignition Sensing (with optional CFM modules)
ide Operating Temperature -40°C to 70°C
E-Mark (E13 No.10R-0515210), LVD EN62368-1, EN50121-3-2

Processor - 8th/9th Generation

Memory - DDR4 SODIMM - Maximum 2 Modules

Component Qty:

Hard Drive - Maximum 2 Drives

Component Qty:

RAID

CFM Module

CMI Modules

Power Supply

Keyboards

Operating System (Entry Level OS can only be used with an i3 or Celeron processor)

Additional Software

Build - Standard / Priority

Warranty

Qty

Total Price:

Details

The Cincoze DX-1100 is a rugged workstation specifically designed to satisfy demands for the high-performance computing platform. Based on LGA 1151 socket and Intel® C246 chipset, the system supports 9/8th generation Intel Xeon® and Core™ processors (formerly codenamed Coffee Lake S) with up to 8 cores and 64GB memory capacity.

Despite its remarkably compact size, the DX-1100 still delivers the maximum flexibility of modular I/O expansions and provides dual hot-swap 2.5" HDD/SSD tray with RAID function. Thanks to Cincoze’ exclusive CFM (Control Function Module) technologies, the DX-1100 can be configured instantly with Power over Ethernet and power ignition sensing functions to be applied in many industrial applications, such as machine vision, in-vehicle transportation, and mobile surveillance.

Featuring rugged construction, fanless/cable-less/jumper-less design, wide operating temperature (-40 to +70°C), wide range DC power input (9~48 VDC), high tolerance to vibration and shock (5/50 Grms), the DX-1100 is maintenance-free and ideal to be deployed in harsh environments.

Processor
- 9th Generation Intel® Coffee Lake-R S Series CPU:
  - Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
  - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
  - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
  - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
  - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
- 8th Generation Intel® Coffee Lake S Series CPU:
  - Intel® Xeon® E-2176G 6 Cores Up to 4.7 GHz - 12M Cache, TDP 80W
  - Intel® Xeon® E-2124G 4 Cores Up to 4.5 GHz - 8M Cache, TDP 71W
  - ntel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W
  - Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W
  - Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W
  - Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W
Memory
- 2x DDR4-2666/2400 MHz SO-DIMM Sockets
- Support up to 64 GB (Un-buffered and Non-ECC type)
  - * i3/Pentium/Celeron: DDR4 2400 MHz
Graphics
- Integrated Intel® UHD Graphics (Xeon: UHD P630; i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610)
- Supports Triple Independent Display (DVI-I/DisplayPort/HDMI)
I/O
- Connector 1x DVI-I Connector (VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60 Hz)
- DisplayPort 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
- HDMI 1x HDMI Connector (3840 x 2160 @30Hz)
- LAN 2x GbE LAN (Support WoL, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45
  - -GbE1: Intel® I219-LM
  - -GbE2: Intel® I210
- Flow Control
  - 4x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
- USB
  - 2x USB 3.2 Gen2x1 (10Gbps)
  - 6x USB 3.2 Gen1x1 (5Gbps)
CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
Terminal Block 1x External FAN Connector, 4-pin Terminal Block (Supports Smart Fan by BIOS)
Storage
- HDD/SSD 2x 2.5" Front Accessable SATA HDD/SSD Bay (SATA 3.0)
- mSATA 3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
- RAID Supports S/W RAID 0, 1, 5 & 10
Expansion
- CFM (Control Function Module) Interface 1x Control Function Module (CFM) Interface
- CMI (Combined Multiple I/O) Interface
  - 2x Combined Multiple I/O (CMI) High Speed Interface
  - 1x Combined Multiple I/O (CMI) Low Speed Interface
- M.2 E Key Socket 1x M.2 2230 Socket (Key E), supports WiFi/Bluetooth module or BIOS Selectable Intel® CNVi (Integrated WiFi/Bluetooth)
- Mini-PCIe 3x Full-size Mini-PCIe Socket
- SIM Socket 1x SIM Socket
- Antenna Hole 3x Antenna Hole
Other Function
- Instant Reboot Supports Instant Reboot Technology (0.2 sec)
- CMOS SuperCap Integrated for CMOS Battery Maintenance-free Operation
- Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Requirement
- Power Type AT/ATX
- Power Input Voltage 9~48VDC
- Terminal Block 3-pin Terminal Block
- Power Adapter Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional)
Physical
- Dimension ( W x D x H ) 242 x 173 x 77 mm
- Weight 3.6 kg
- Construction Extruded Aluminum with Heavy Duty Metal
- Mounting Wall mount / VESA mount / DIN Rail Mount / Side Mount
- Physical Design
- Unibody Chassis
- Fanless Design
- Jumper-less Design
- Cable less Design
Protection
- Reverse Power Input Protection Yes
- Over Voltage Protection Protection Range: 51~58V
  - Protection Type: shut down operating voltage, re-power on at the preset level to recover
- Over Current Protection 15A
Operating System
- Windows Windows® 10
Environment
- Operating Temperature
  - 35W TDP Processor: -40°C to 70°C
  - 54~65W TDP Processor: -40°C to 45°C
  - 71~80W TDP Processor: -40°C to 40°C
  - *PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
  - *With extended temperature peripherals; Ambient with air flow
  - *According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
- Storage Temperature -40°C to 85°C
- Relative Humidity 95% RH @ 40°C (Non-condensing)
- Shock IEC60068-2-27: Operating, 50 Grms, Half-sine 11 ms Duration, w/ SSD
- Vibration IEC60068-2-64: Operating, 5 Grms, 5-500 Hz, 3 Axes, w/ SSD
- MTBF 407,391 Hours
  - - Database: Telcordia SR-332 Issue3, Method 1, Case 3
EMC
- CE, UKCA, FCC, ICES-003 Class A
E-mark
- EMI
  - CISPR 32 Conducted & Radiated: Class A
  - EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  - EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  - EN/BS EN61000-3-3 Voltage fluctuations & flicker
  - FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
- EMS
  - EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  - EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  - EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
  - EN/IEC 61000-4-5 Surges: AC Power: 2 kV
  - EN/IEC 61000-4-6 CS: 10V
  - EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  - EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
- Safety LVD IEC/EN 62368-1
- Railway EMC:
  - EN 50155: 2007 / AC: 2012 Clause 5.4, 5.5
  - EN 50121-1: 2017
  - EN 50121-3-2: 2016
- Simulated Long Life Test:
  - EN 50155: 2017 Clause 13.4.11.2
    - IEC 61373 Edition 2.0: 2010, Category 1, Class B-Body mounted: Operating
- Vibration:
  - EN 50155: 2017 Clause 13.4.11.4
    - IEC 61373 Edition 2.0: 2010, Category 1, Class B-Body mounted: Operating
- Shock:
  - EN 50155: 2017 Clause 13.4.11.3
    - IEC 61373 Edition 2.0: 2010, Category 1, Class B-Body mounted: Operating
- Dry Heat Thermal Test
- EN 50155: 2017 Clause 13.4.5.3
  - Thermal Test Cycle: B
  - Operating Temperature: OT4 (-40°C to 70°C), 85°C (for 10 minutes)
- Fire Protection EN 45545-2
