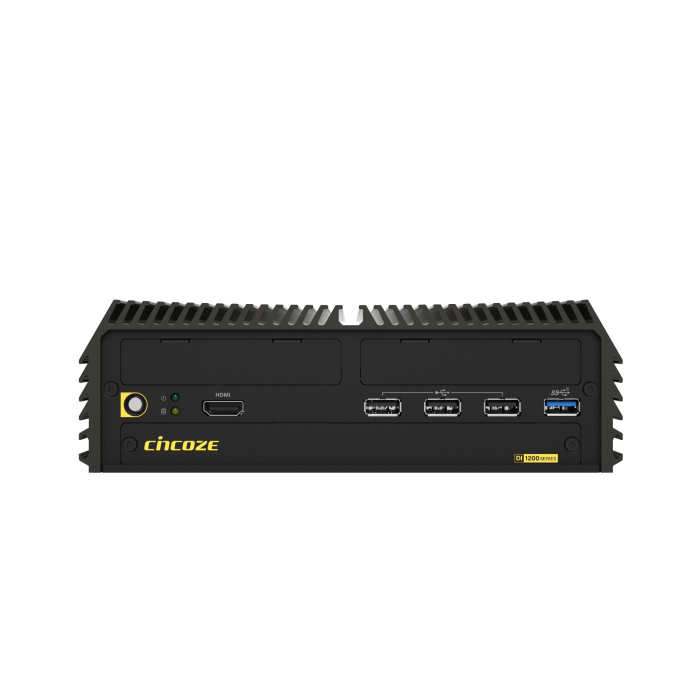

main product photo

Intel 12th Generation i5-1245UE Processor Rugged Embedded Computer

$1,325.00
SKU
DI-1200-i5-R10

Intel® 12th Gen. Alder Lake-P Platform, High Performance and Power Saving Rugged Embedded Computer

PRODUCTS FEATURES

  • Onboard 12th Intel® Alder Lake-P U-Series Core™ i7/i5/i3 Processors
  • 1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 32GB Memory
  • Quad Independent Display (2x DP/HDMI/CMI Display)
  • 1x M.2 Key E Type 2230 Socket for Wireless / Intel CNVi Module Expansion
  • 1x M.2 Key B Type 3042 / 3052 Socket for 5G / Storage / Add-on Card Expansion
  • CMI Technology for Optional I/O Module Expansions
  • CFM Technology for Power Ignition Sensing Function & PoE
  • ide Operating Temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
Component Qty:
Add to Compare

The DI-1200, with a 12th generation Intel® Core™ U-series (Alder Lake-P Platform) processor, provides outstanding performance and boasts a low power consumption of 15W. The compact DI-1200 offers rich I/O interfaces and expansion options, meeting the requirements for high-performance, rugged embedded computers used in confined spaces. It suits for industrial automation, warehousing and logistics, transportation, environmental monitoring, and IoT applications.

High Performance and Power Saving


The DI-1200 supports the 12th generation Core™ i7/i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. Its exceptional processing performance and ultra-low power consumption of just 15W, make it highly suitable for mobile devices limited by battery capacity.

Smaller than A5


The DI-1200 has a footprint smaller than a sheet of A5 paper, with dimensions of only 203 x 142 x 66.8 mm. It is ideal for mobile devices such as AGVs and AMRs, tight spaces in vehicles, or small cabinets in factories.

High-speed I/O


The DI-1200 offers a range of high-speed I/O, including LAN (10GbE, 2.5GbE, 1GbE), USB 3.2 (10Gbps, 5Gbps), USB 2.0, and more, making data and image transmission faster and allowing easy connection to various high-speed devices.

Comprehensive Wireless Options


The DI-1200 has one M.2 Key E slot and one M.2 Key B slot, supporting a full range of wireless transmission options, including GSM, GNSS, Wi-Fi, and Bluetooth. It also supports the Intel CNVi module, meeting diverse transmission needs.

Quick Hard Drive Removal


Mobile devices must allow quick access to data. The DI-1200 features a hot-swappable 2.5-inch SATA HDD/SSD slot in the front panel of the chassis, making it easy to remove the hard drive and access the data on it.

Secure and Rugged


The DI-1200 showcases its ruggedness and industrial-grade protections through multiple industry certifications. It complies with industrial EMC standards (IEC 61000-6-2 and IEC 61000-6-4), ensuring reliable operation in external electromagnetic interference from surrounding devices. The DI-1200 also meets the U.S. military standard, MIL-STD-810H, ensuring stable operation under extreme shock and vibration conditions.

  • Processor
    • Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W
  • Memory
    • 1x DDR5 SO-DIMM Socket,
    • Supports Un-buffered and non-ECC Type, Up to 32GB
  • Graphics Engine
    • ntegrated Intel® UHD Graphics: Core™ i3-1215UE
    •
    • Maximum Display Output
    • Supports Quad Independent Display
    • HDMI    1x HDMI Connector (3840 x 2160@60Hz)
    • DP    2x DisplayPort Connector (3840 x 2160@60Hz)
    • CMI Display    1x CMI Interface for Optional CMI-DP/CMI-HDMI/CMI-VGA Module Expansion
  • Line-out    1 x Line-out, Phone Jack 3.5mm
  • Mic-in    1 x Mic-in, Phone Jack 3.5mm
  • I/O
    • LAN
      • 2x 2.5 GbE LAN, RJ45
      • GbE1: Intel® I225
      • GbE2: Intel® I225
    • COM    2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
    • USB
      • 1 x USB 3.2 Gen2x1 (10Gbps), Type A
      • 2 x USB 3.2 Gen1x1 (5Gbps), Type A
      • 3 x USB 2.0 (480Mbps), Type A
    • Storage    SSD/HDD
      • 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
    • M.2 SSD
      • 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket
    • RAID    Support RAID 0/1
  • Expansion
    • M.2 Key E Socket
      • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion
      • * The maximum height of the M.2 Key E add-on card is limited to 6.7mm.
    • M.2 Key B Socket
      • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / USB2.0 / SATA ), Support 5G/Storage/Add-on Card Expansion
      • * The maximum height of the M.2 Key B add-on card varies depending on the installed CMI module. Please refer to the manual for detailed information.
    • SIM Socket    2 x Front Accessible SIM Socket
    • CMI (Combined Multiple I/O) Interface
      • 1x CMI Interface for optional CMI-LAN Module Expansion
      • 1x CMI Interface for optional CMI-Display / CMI-COM / CMI-DIO Module Expansion
    • CFM (Control Function Module) Interface
      • 1x CFM IGN Interface for optional CFM-IGN Module Expansion
  • Other Function
    • External FAN Connector    1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
    • Clear CMOS Switch    1x Clear CMOS Switch
    • Reset Button    1x Reset Button
    • Instant Reboot    Support 0.2sec Instant Reboot Technology
    • Watchdog Timer    Software Programmable Supports 256 Levels System Reset
    • Power
      • Power Button    1 x ATX Power On/Off Button
      • Power Mode Switch    1 x AT/ATX Mode Switch
      • Power Input    9 - 48VDC, 3-pin Terminal Block
      • Remote Power On/Off    1 x Remote Power On/Off, 2-pin Terminal Block
      • Remote Power LED    1 x Remote Power LED, 2-pin Terminal Block
  • Physical
    • Dimension ( W x D x H )    203 x 142 x 66.8 mm
    • Weight Information    1.8 KG
    • Mechanical Construction    Extruded Aluminum with Heavy Duty Metal
  • Mounting    Wall / Side / DIN-RAIL / VESA Mount
  • Physical Design
    • Fanless Design
    • ableless Design
    •
    • Jumper-less Design
    • Unibody Design
  • Reliability & Protection
    • Reverse Power Input    Yes
    • Over Voltage Protection
    • Protection Range: 51~58V
    • Protection Type: shut down operating voltage, re-power on at the preset level to recover
    • Over Current Protection    15A
    • CMOS Battery Backup    SuperCap Integrated for CMOS Battery Maintenance-free Operation
    • MTBF    486,235 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
  • Operating System
    • Windows®11, Windows®10
  • Environment
    • Operating Temperature    -40°C to 70°C
    • Storage Temperature    -40°C to 70°C
    • Relative Humidity    95% RH @ 70°C (Non-condensing)
    • Shock    MIL-STD-810H
    • Vibration    MIL-STD-810H
  • EMC
    • CE, UKCA, FCC, ICES-003 Class A
    • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
    • EN 50155 (EN 50121-3-2 Only)
    • E-mark (Pending)
  • EMI
    • CISPR 32 Conducted & Radiated: Class A
    • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
    • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
    • EN/BS EN 61000-3-3 Voltage fluctuations & flicker
    • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
  • EMS
    • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
    • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
    • EN/IEC 61000-4-6 CS: 10V
    •   (**Compliant with the standard when utilizing shielded cable.)
    • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
    • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
  • Safety    UL, cUL, CB, IEC, EN 62368-1

Memory: 8GB DDR5 SODIMM Unbuffered Non-ECC
Storage: 250GB Solid State Drive, SATA3
Operating System: None
Power Supply: 60W AC/DC Power Supply, 12V/5A
