Cincoze 10th Generation Intel® Rugged Embedded Industrial Computer with PCIe Expansion
Cincoze 10th Generation Intel® Xeon/Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer and PCIe Expandable Rugged Embedded Computer, Supports up to 2x PCI/PCIe Expansion Slot
- 10-core 10th-gen Intel® Xeon® and Core™ i9/i7/i5/i3 CPU (max 80 W TDP)
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- Up to 2x PCI/PCIe expansion slots
- 3x full-size Mini PCIe sockets, 2x SIM card slots
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)

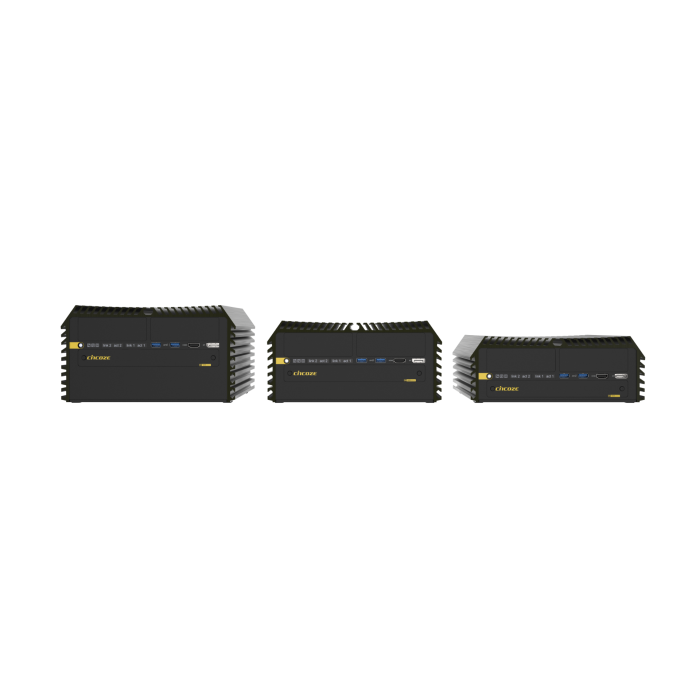

The DS-1300 Series is a powerful embedded computer and brings unrivalled performance. It has versatile functionalities and rich industrial I/O. And most importantly, it has dual PCI/PCIe expansion capability. Equipped with Cincoze’s CMI, CFM, MEC modular expansion, customization for additional I/O or other functionality to fulfill different applications couldn’t be easier. The DS-1300 Series meets the requirements of industrial environments and is certified with industry standards. It delivers ultimate and reliable performance for factory automation, industrial automation and rolling stock applications.
10-Core, Up To 80 W CPU
The DS-1300 series, powered by a workstation-grade 10th-gen Intel® Xeon® or Core™ i9/i7/i5/i3 CPU with up to 10-core architecture, provides superior processing performance. The DS-1300 Series supports Xeon® CPU up to 80 W TDP. It incorporates DDR4 2933/2666 MHz memory up to 64 GB, delivering unparalleled performance in a rugged, fanless system.
More Powerful & Faster
Multiplies Productivity

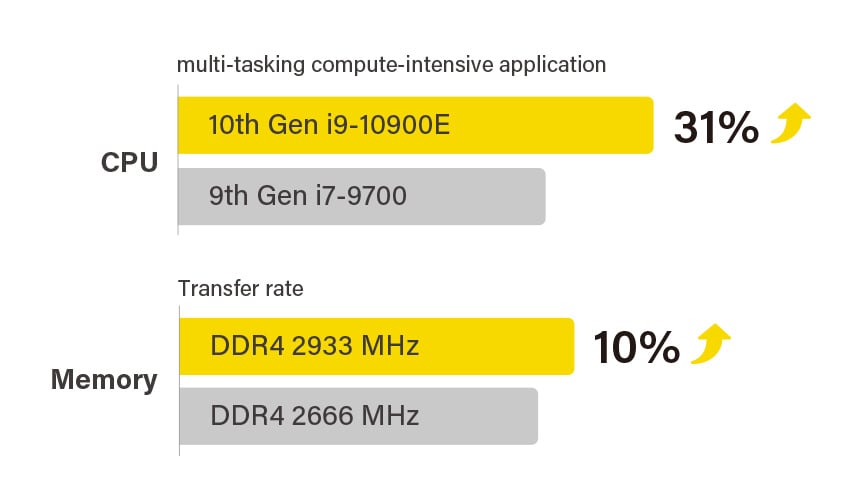

The DS-1300 series's 10th-gen CPU brings to 31% better integer multi-tasking for compute-intensive application performance than 9th-gen CPUs*. DDR4 2933 MHz memory further increases speed by 10%**. The processing platform delivers the performance required to consolidate multiple workloads for intelligent devices and applications.
* 31% increase for 10th-gen i9-10900E 65W vs 9th-gen i7-9700 65W CPU
** 10% increase for 2933 MHz of DS-1300 vs 2666 MHz of DS-1200.
Industrial I/O and
Modular Expansion

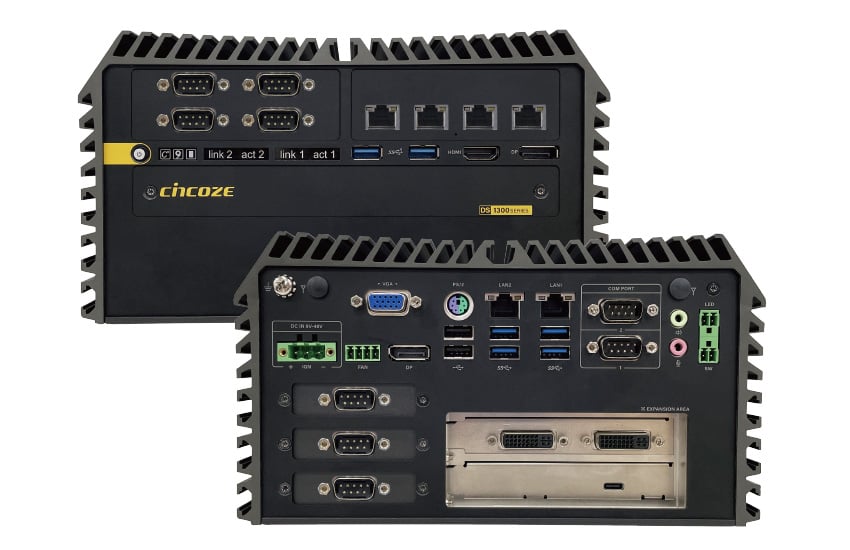

The DS-1300 series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and triple independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and ignition sensing.
PCI/PCIe
Add-on Cards
DS-1300 Series can accommodate up to dual PCI/PCIe add-on cards up to 111 mm x 235 mm (combined max 110 W). Flexible PCI/PCIe expansion allows the addition of I/O, GPU, image capture, data acquisition, and motion control cards for specific applications.
Adjustable
PCIe Card Retainer
The PCI/PCIe expansion slots include two adjustable card retainers that firmly secure the PCI/PCIe add-on cards. The retainer is a cool feature that provides the extra protection needed to prevent add-on cards from shaking loose in high-vibration environments like rolling stock.
Patent No. I773359
Rugged Reliability
Against Rigorous Environments
The DS-1300 series's fanless and cableless industrial-grade design can withstand rigorous environments. Its unique thermal design supports an extended operating temperature range from -40°C to 70°C. It has also passed stringent industry standards, including MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) for rolling stock environments.
- Processor Intel® Core® Series Processor ( 65W / 35W ):
- Intel® Core™ i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W
- Intel® Core™ i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W
- Intel® Core™ i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W
- Intel® Core™ i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W
- Intel® Core™ i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W
- Intel® Core™ i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W
- Intel® Core™ i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W
- Intel® Core™ i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W
- Memory
- 2x DDR4 2933/2666/2400 SO-DIMM Socket
- Graphics
- Graphics Engine Integrated Intel® UHD-630 Graphics
- Maximum Display Output Supports Triple Independent Display
- HDMI 1 x HDMI Connector (4096 x 2160@30Hz)
- DP 2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160
- VGA 1 x VGA Connector (1920 x 1200 @60Hz)
- I/O
- LAN
- 2 x GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2: Intel® I210
- COM
- 2 x RS-232/422/485 with Auto Flow Control ( Supports 5V / 12V ), DB9
- USB
- 2 x 10Gbps USB 3.2 Gen2, Type A
- 4 x 5Gbps USB 3.2 Gen1, Type A
- 2 x 480Mbps USB 2.0, Type A
- PS/2 1 x PS/2, 6 Pin Mini-DIN Female Connector
- LAN
- Storage
- SSD/HDD
- 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
- 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
- RAID Support RAID 0/1/5/10
- mSATA 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
- M.2 SSD 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD ( SATA 3.0 )
- SSD/HDD
- Expansion
- PCI Express
- 1 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L): 111 x 235 mm
- 2 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L): 111 x 235 mm
- Mini PCI Express 3 x Full-size Mini-PCIe Socket
- SIM Socket 2 x SIM Socket
- CMI (Combined Multiple I/O) Interface
- 2 x High Speed CMI Interface for optional CMI Module Expansion
- 2 x Low Speed CMI Interface for optional CMI Module Expansion
- CFM (Control Function Module) Interface 1 x CFM IGN Interface for optional CFM-IGN Module Expansion
- PCI Express
- Power Ignition Sensing Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
- Clear CMOS Switch 1 x Clear CMOS Switch
- Reset Button 1 x Reset Button
- Watchdog Timer Software Programmable Supports 256 Levels System Reset
- Power Input 9 - 48VDC, 3-pin Terminal Block
- Physical
- Dimension ( W x D x H )
- 227 x 261 x 88 mm (Base Unit)
- 227 x 261 x 108 mm (With one PCI/PCIe expansion slot)
- 227 x 261 x 128 mm (With two PCI/PCIe expansion slots)
- Dimension ( W x D x H )
- Weight Information
- 4.5 KG (Base Unit)
- 5.04 KG (With one PCI/PCIe expansion slot)
- 5.4 KG (With two PCI/PCIe expansion slots)
- Mechanical Construction Extruded Aluminum with Heavy Duty Metal
- Mounting Wall Mount
- Physical Design
- Fanless Design
- Cableless Design
- Jumper-less Design
- Unibody Design
- Reliability & Protection
- Reverse Power Input Protection Yes
- Over Voltage Protection
- Protection Range: 51~58V
- Protection Type: shut down operating voltage, re-power on at the preset level to recover
- Over Current Protection 15A
- CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
- MTBF • 371,393 Hours
- - Database: Telcordia SR-332 Issue 3, Method 1, Case 3
- Operating System
- Windows Windows® 10
- Linux Supports by project
- Environment
- Operating Temperature
- 35W TDP Processor: -40°C to 70°C
- 58W – 65W TDP Processor: -40~50°C (With External Fan Kit)
- 80W TDP Processor: -40~40°C (With External Fan Kit)
- * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
- * With extended temperature peripherals; Ambient with air flow
- * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
- Storage Temperature -40°C to 85°C
- Relative Humidity 95%RH @ 70°C (non-Condensing)
- Shock MIL-STD-810G
- Vibration MIL-STD-810G
- Operating Temperature
- EMC
- CE, UKCA, FCC, ICES-003 Class A
- EN 50155 (EN 50121-3-2 Only)
- EMI
- CISPR 32 Conducted & Radiated: Class A
- EN/BS EN 50121-3-2 Conducted & Radiated: Class A
- EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
- EN/BS EN61000-3-3 Voltage fluctuations & flicker
- FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
- EMS
- EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
- EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
- EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
- EN/IEC 61000-4-5 Surges: AC Power: 2 kV
- EN/IEC 61000-4-6 CS: 10V
- EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
- EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
- Safety
- IEC/EN 62368-1
