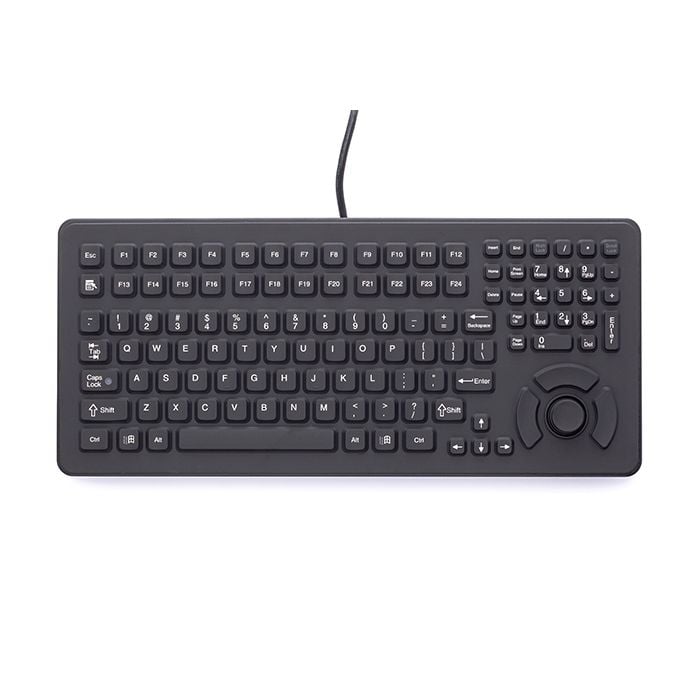

iKey Intrinsically Safe Keyboard
$1,845.00
SKU
DU-5K-FSR-IS
iKey® manufactures devices to reduce risk of failure in your hazardous areas. The intrinsically safe DU-5K-FSR-IS is designed to meet NEMA 4X specifications. It features 116-key functionality, including 24 function keys, and an ABS polycarbonate case. It has a Factory Mutual approval for Class I, II and III, Division I, Groups C, D, E, F and G. The DU-5K-FSR-IS includes optical isolated barriers and bulkhead cables for complete protection in hazardous locations. An upgraded FSR pointing device is integrated into the DU-5K-FSR-IS, which offers improved sensitivity and increased durability.
Key Features
- 10-Key Numeric Pad
- 116-Key Functionality
- 24 Function Keys
- Integrated Force Sensing Resistor(FSR) Pointing Device
- Polycarbonate Case with Mounting Holes
- PS/2 configurations available
Product Details
- CERTIFICATIONS
- NEMA 4X, UL60950, FCC Part 15 Class B Factory Mutual Class I, II, & III, Division I, Groups C, D, E, F, & G
- SHOCK 3x11 ms pulses of 50g on each of 3 axes
- CABLE
- LENGTH: 5 feet from keyboard to Bulkhead Connector
- DESIGN: 2 separate cables (providing separate keyboard and mouse connections)
- KEY SWITCH
- MATERIAL: Industrial silicone rubber
- LIFE: 10 million cycles
- TRAVEL: 0.055 in. (1.4mm)
- ACTUATION FORCE: 6.35 oz. +/- 1.06 oz. (200g +/- 30g)
- FEEDBACK: Tactile with mechanical snap
- VIBRATION
- POWER SPECTRAL DENSITY: 0.04g/Hz
- FREQUENCY RANGE: 20Hz - 2 kHz
- DURATION OF TEST PER AXIS: 3 hours
- POWER
- KEYBOARD: 5V@ 10 ma (from CPU port)
- HULAPOINT: 5V@ 10 ma (from mouse conn. port)
- COMPATIBILITY
- PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems
- TEMPERATURE RANGE
- STORAGE: -40C to +70C (-40F to +158F)
- OPERATING: -20C to +60C (-4F to +140F)
- WEIGHT
- 3.8 lbs +/- 0.10 lbs (1.7 kg +/- 0.05 kg)
- DIMENSIONS
- 14.94" x 6.63" x 1.81" (w-h-d) 379.5mm x 168.4mm x 46mm
