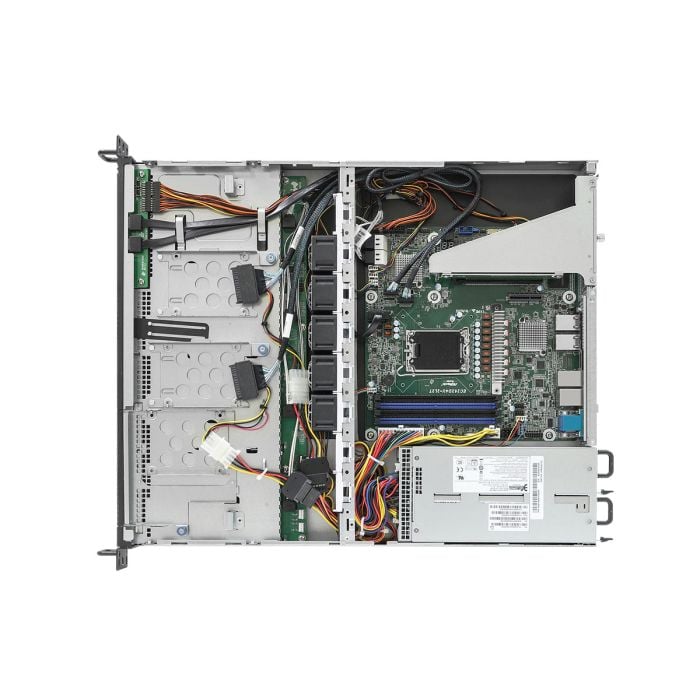

1U Intel Xeon E-Series Industrial Rackmount Server
$1,650.00
SKU
BBAK1U4LWC2622L2TRPSU
1U4LW-C262/2L2T RPSU
- 1U Rackmount with 1+1, 80-PLUS Platinum, 450W RPSU
- Single Socket V1 (LGA 1700), supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
- 4 DIMM slots, supports DDR5 ECC UDIMM
- 4 Hot-swap 3.5" SATA drive bays
- 2 fixed 2.5" NVMe (PCIe4.0 x4) drive bays
- 1 FHHL PCIe5.0 x16
- Supports 1 M.2 (PCIe4.0 x4)
- 2 RJ45 (10GbE) by Intel® X710
- 2 RJ45 (1GbE) by Intel® i210
- Remote management (IPMI)
- I/O Ports 2 Type-A (USB3.2 Gen1)
- External Drive Bay / Storage
- Front Side Drive Bay 4 Hot-swap 3.5" SATA drive bays
- Internal Side
- 2 fixed 2.5" NVMe (PCIe4.0 x4) drive bay
- 1 M-key (PCIe4.0 x4); support 2280/2260/2242/2230 form factor [PCH]
- Power Supply
- Type 1+1 Hot-swap RPSU
- Output Watts 450W @ 100-240Vac input
- Efficiency 80-PLUS Platinum
- AC Input AC 100-240V/6-3A,50-60 Hz
- Processor System
- CPU Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
- Socket Single Socket LGA 1700
- Thermal Design Power max. up to 95W (TDP)
- System Memory
- Supported DIMM Quantity 4 DIMM slots (2DPC)
- Supported Type Supports DDR5 288-pin ECC UDIMM
- Max. Capacity per DIMM 32GB
- Max. DIMM Frequency 4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R)
- PCIe Expansion Slots
- PCIe x 16 1 FHHL PCIe5.0 x16 via RB1UX16R_G5
- TPM support 1 TPM v2.0(13-pin, SPI)
- Ethernet
- Additional GbE Controller
- 2 RJ45 (10GbE) by Intel® X710
- 2 RJ45 (1GbE) by Intel® i210
- Server Management
- BMC Controller ASPEED AST2600: iKVM, vMedia support
- IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
- Additional GbE Controller
- Graphics Controller
- ASPEED AST2600:
- 1 DB15 (VGA)
- ASPEED AST2600:
- Rear I/O
- Video Port 1 DB15 (VGA)
- Serial Port 1 DB9 (COM)
- USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
- RJ45 2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI
- Hardware Monitor
- Temperature CPU, MB, Card side, VR, DDR5, PCH, M.2, X710, TR1 Temperature sensing
- Fan Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- Fan Multi-Speed Control
- Environment
- Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
- Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
