  • 1U Intel Arrow Lake Industrial Rackmount Server

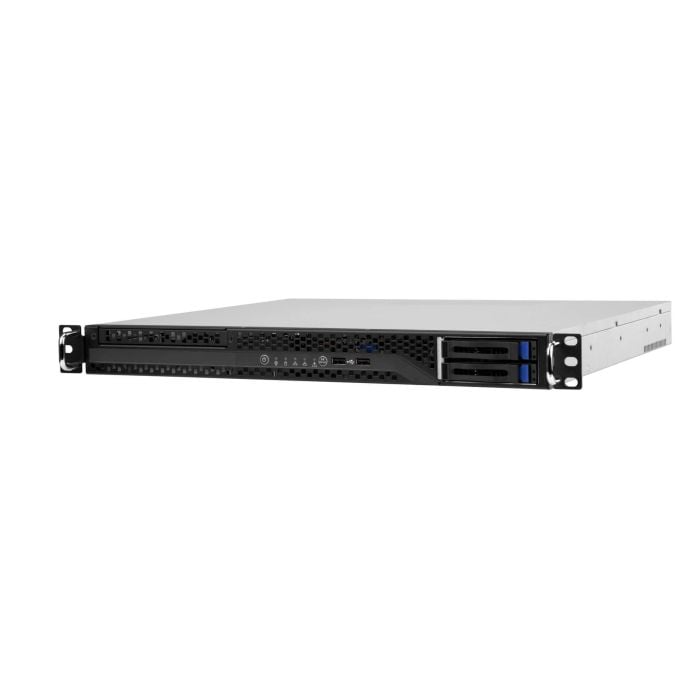

main product photo

1U Intel Arrow Lake Industrial Rackmount Server

$959.00
SKU
1U-S-MSCF20

Intel® Arrow Lake-S , Core™ U9/U7/U5 & Intel® W880 for High-Performance

  • Intel® Arrow Lake-S Series with W880
  • 4 DDR5 5600 MT/s ECC/non-ECC UDIMM slots up to 192GB
  • Triple independent displays: VGA, DP, HDMI
  • 4 2.5GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 5) Slot or 2 PCIe x8 (Gen 5), 4 PCIe x4 (Gen 4, 1 signal from CPU, 3 signal from PCH), 1 PCI slot, 1 M.2 E key slot
  • 2 M.2 M key, 4 SATA 3.0 for storage
  • SATA RAID 0/1/5/10
  • 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 10 COM (2 RS-485 / 8 RS-232), GPIO, PS/2, Audio, 3 System FAN
  • Onboard TPM 2.0
Component Qty:
Component Qty:
Component Qty:
Component Qty:
Add to Compare



Processor

Intel® Arrow Lake-S Core™ Ultra 9/7/5, Max 125W
CPU Type

Socket (LGA1851)
Chipset

Intel® W880
Memory Technology
  • Dual-channel DDR5 (ECC/non-ECC) 5600 MT/s (ECC support will depend on CPU)
  • Max. Capacity Up to 192GB

Display Controller
  • Intel® UHD Graphics
    • VGA 1
    • HDMI 1
    • DisplayPort 1
  • Multiple Display 3 independent displays
  • Display Interface
    • VGA up to 1920 x 1200 @60Hz
    • HDMI up to 4096 x 2160 @60Hz
    • DP up to 4096 x 2304 @60Hz
Ethernet Controller

4 x Intel® I226-LM 2.5GbE LAN
Audio Controller

Realtek® ALC897 Audio Codec
Super I/O Controller

FINTEK F81967D-I
H/W Monitor

Watchdog Timer

256-level Watchdog Timer

Smart Fan Yes
TPM Controller

Infineon® SLB9672VU2.0
I/O Interface
  • PS/2
    • 1 x PS/2 port by Y-cable for keyboard and mouse
  • USB
    • 8 x USB 3.2 Gen 2 x1 (8 x rear)
    • 2 x USB 3.2 Gen 1 (2 x internal)
    • 3 x USB 2.0 (3 x internal with one Right Angle Type-A Connector)
  • Serial
    • 10 x COM ports (1 x rear, 9 x internal)
      • COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
      • COM3~6: RS-232, 0V/5V/12V, Auto-flow Control
      • COM7~10: RS-232, 0V/5V/12V, Auto-flow Control
  • GPIO
    • 16-bits (8 x GPI; 8 x GPO), 5V
Expansion Slot
  • PCIe x16
    • 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)
  • PCIe x4 4
  • PCI 1
  • M.2
    • 1 x M key (Signal from CPU) 2280, 1 x M key (Signal Shared by PCIe Slot5) 2280
    • 1 x E key (PCIe x1), 2230
SATA

4 x SATA 3.0 (RAID 0/1/5/10)
Environment

Operating Temperature 0 ~ 60°C

Operating Humidity 10 ~ 90%, non-condensing

Storage Humidity 10 ~ 90%, non-condensing

Storage Temperature -20 ~ 80°C
EMC

CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN
OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit)

Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
