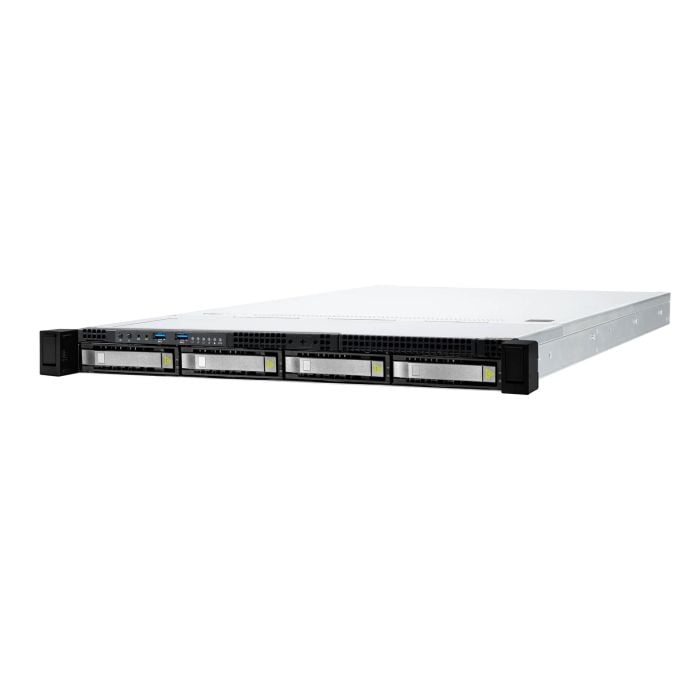

1U Intel Arrow Lake Industrial Rackmount Server
$887.00
SKU
1U-MSCF20
ATX with Intel® Arrow Lake-S , Core™ U9/U7/U5 & Intel® W880 for High-Performance Solution
- Intel® Arrow Lake-S Series with W880
- 4 DDR5 5600 MT/s ECC/non-ECC UDIMM slots up to 192GB
- Triple independent displays: VGA, DP, HDMI
- 4 2.5GbE LAN with RJ-45
- 1 PCIe x16 (Gen 5) Slot or 2 PCIe x8 (Gen 5), 4 PCIe x4 (Gen 4, 1 signal from CPU, 3 signal from PCH), 1 PCI slot, 1 M.2 E key slot
- 2 M.2 M key, 4 SATA 3.0 for storage
- SATA RAID 0/1/5/10
- 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 10 COM (2 RS-485 / 8 RS-232), GPIO, PS/2, Audio, 3 System FAN
- Onboard TPM 2.0
Product Details
- Processor
- Intel® Arrow Lake-S Core™ Ultra 9/7/5, Max 125W
- CPU Type
- Socket (LGA1851)
- Chipset
- Intel® W880
- Memory Technology
- Dual-channel DDR5 (ECC/non-ECC) 5600 MT/s (ECC support will depend on CPU)
- Max. Capacity Up to 192GB
- Display Controller
- Intel® UHD Graphics
- VGA 1
- HDMI 1
- DisplayPort 1
- Multiple Display 3 independent displays
- Display Interface
- VGA up to 1920 x 1200 @60Hz
- HDMI up to 4096 x 2160 @60Hz
- DP up to 4096 x 2304 @60Hz
- Ethernet Controller
- 4 x Intel® I226-LM 2.5GbE LAN
- Audio Controller
- Realtek® ALC897 Audio Codec
- Super I/O Controller
- FINTEK F81967D-I
- H/W Monitor
- Watchdog Timer
- 256-level Watchdog Timer
- Smart Fan Yes
- Watchdog Timer
- TPM Controller
- Infineon® SLB9672VU2.0
- I/O Interface
- PS/2
- 1 x PS/2 port by Y-cable for keyboard and mouse
- USB
- 8 x USB 3.2 Gen 2 x1 (8 x rear)
- 2 x USB 3.2 Gen 1 (2 x internal)
- 3 x USB 2.0 (3 x internal with one Right Angle Type-A Connector)
- Serial
- 10 x COM ports (1 x rear, 9 x internal)
- COM1~2: RS-232/422/485, Ring/0V/5V/12V, Auto-flow Control (Default set to Ring)
- COM3~6: RS-232, 0V/5V/12V, Auto-flow Control
- COM7~10: RS-232, 0V/5V/12V, Auto-flow Control
- 10 x COM ports (1 x rear, 9 x internal)
- GPIO
- 16-bits (8 x GPI; 8 x GPO), 5V
- PS/2
- Expansion Slot
- PCIe x16
- 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)
- PCIe x4 4
- PCI 1
- M.2
- 1 x M key (Signal from CPU) 2280, 1 x M key (Signal Shared by PCIe Slot5) 2280
- 1 x E key (PCIe x1), 2230
- PCIe x16
- SATA
- 4 x SATA 3.0 (RAID 0/1/5/10)
- Power Supply
- ATX-Power 24P, 12V-8P
- Environment
- Operating Temperature 0 ~ 60°C
- Operating Humidity 10 ~ 90%, non-condensing
- Storage Humidity 10 ~ 90%, non-condensing
- Storage Temperature -20 ~ 80°C
- Dimensions
- 305 x 244 mm (ATX)
- Weight 0.777 kg
- EMC
- CE, FCC Class B, BSMI, RCM, VCCI, UKCA, CN
- OS Support
- Windows 10 IoT Enterprise 2021 LTSC (64-bit)
- Windows 11 IoT Enterprise 24H2 LTSC (64-bit)
