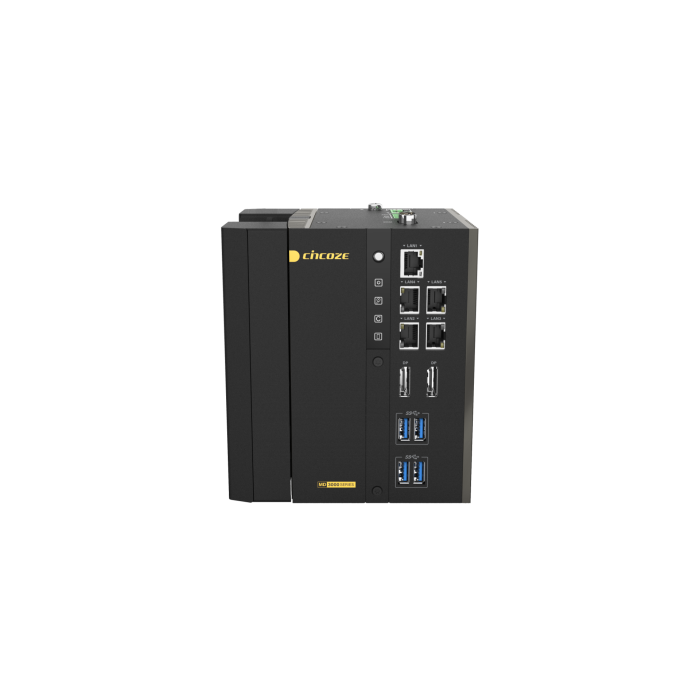

14th Generation High Performance Scalable Computer System

$1,603.00

SKU

BBCZMD3000

14/13/12th Generation Intel Core Series Processors, High Performance and Scalable DIN-Rail Computer

PRODUCTS FEATURES

Intel® 14/13/12th Gen Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processor
Scalable Design with Optional Scalable Expansion Deck for I/O Modules Expansion
Compact Size with DIN-Rail Mount Support
Supports Dual PCIex4 NVMe SSD with RAID Function

12th/13th/14th Generation CPU

Memory - DDR5 SODIMM - Maximum 2 Modules

Component Qty:

M.2 NVME Drive - Maximum 2 Drives

Component Qty:

Power Supply

Scalable Expansion Deck

Expansion Modules 1

Expansion Modules 2

Expansion Modules 3

Expansion Modules 4

Keyboards

Operating System (Entry Level OS can only be used with an i3 or Celeron processor)

Additional Software

Build - Standard / Priority

Warranty

Qty

Total Price:

Details

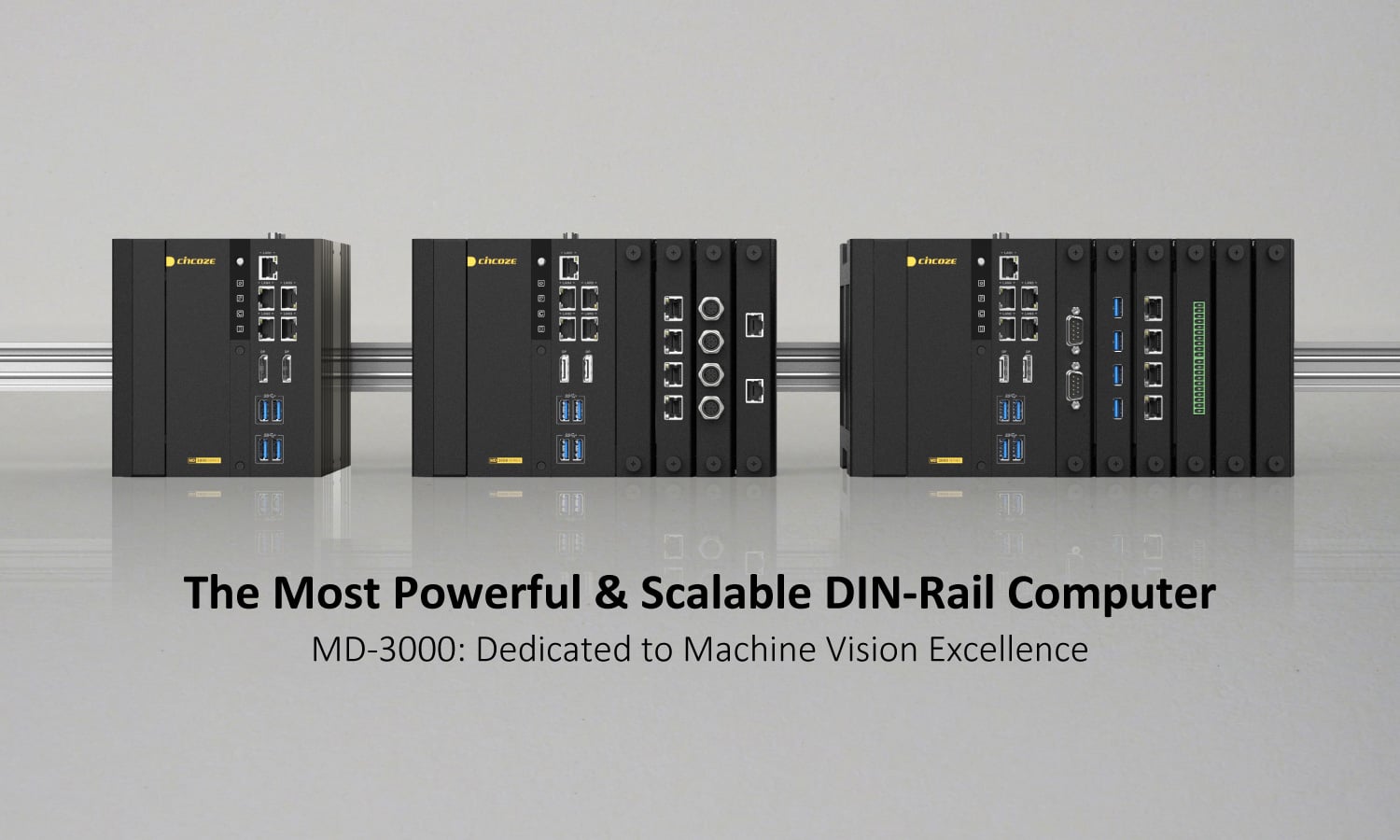

Designed for workstations and machinery in machine vision and smart manufacturing, the Cincoze MD-3000 series is a unique DIN-Rail embedded computer with compact size, excellent performance, broad expandability, and high reliability.

Small and powerful: The body is only 150 mm high but supports a desktop-grade Intel® Core™ CPU. This easily copes with high-speed image processing and AI applications.
Small and expandable: Includes multiple native high-speed and industrial I/O and M.2 expansion slots. Supports up to a six-slot Scalable Expansion Deck (SED), allowing flexible installation of Scalable Expansion Modules (SEMs) for additional I/O, storage, and wireless transmission functions.
Small and reliable: Consistent rugged design that passes multiple industrial standards (vibration resistant, shock resistant, EMC, safety, etc.) to ensure long-term stable operation in harsh environments. This makes it the best computing platform for machine vision applications at smart manufacturing sites.

Excellent computing performance

Supports 14th/13th/12th generation Intel® Core™ CPUs (35–65W), up to 96GB of 5600MHz DDR5 memory, and up to 2 NVMe SSDs. Delivers the performance required for machine vision tasks, such as vision-guided robotics, inspection, measurement, and visualization.

Key heat dissipation technology

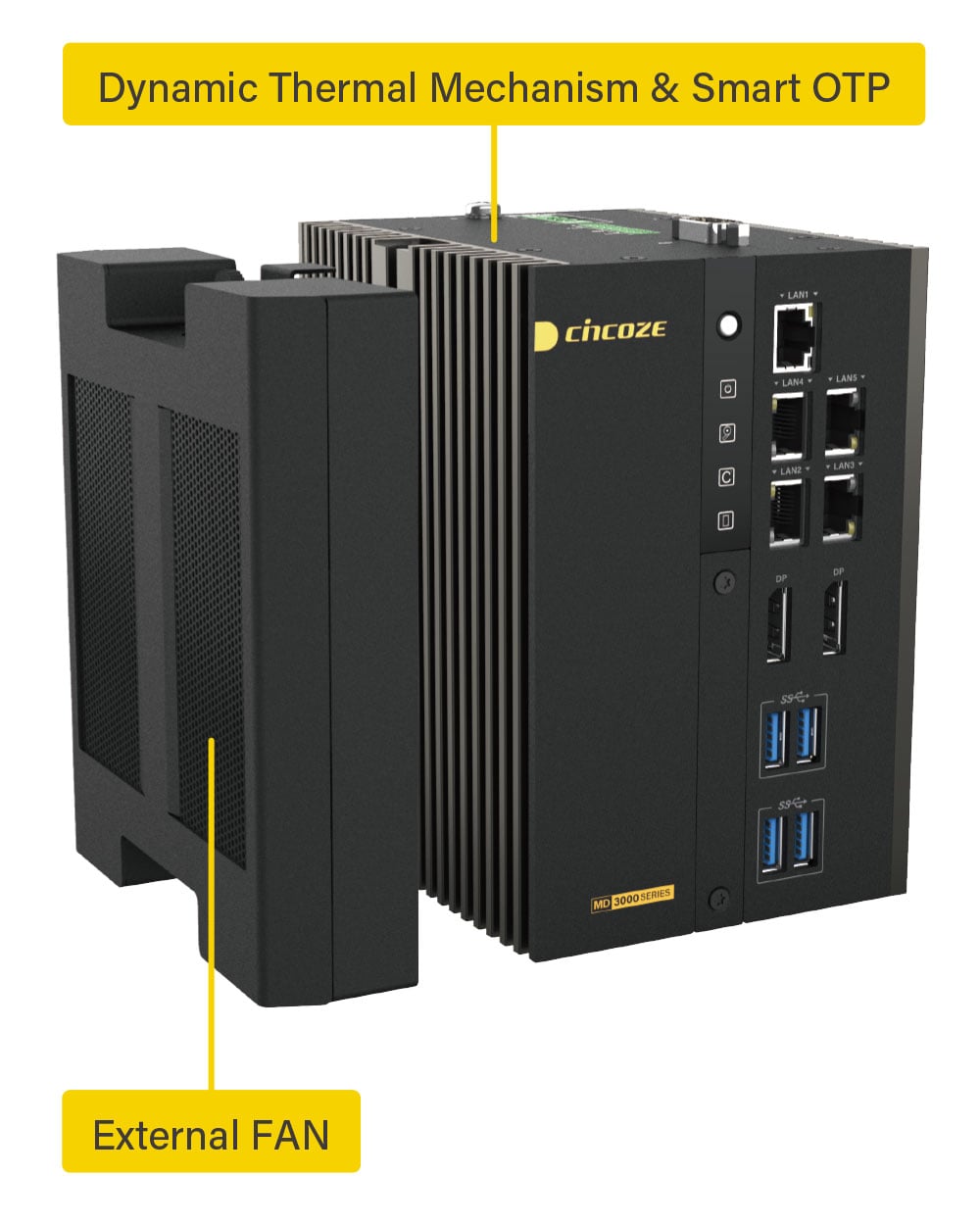

Two thermal designs ensure sustained performance: the patented Dynamic Thermal Mechanism design, ensuring tight fit between the CPU heatsink and top cover, an external fan provides dust-free cooling, and the patented Smart OTP monitors fan status and system/CPU temperature.

[Patent No. I893729, I870277]

Comprehensive expansion options

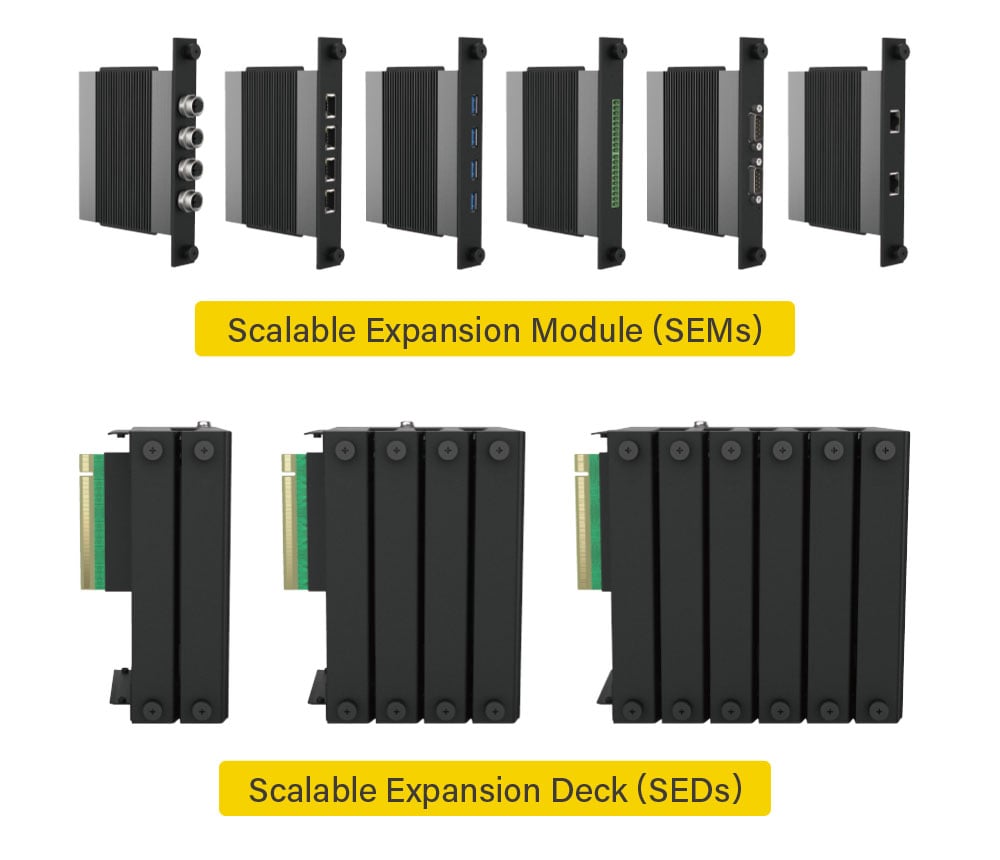

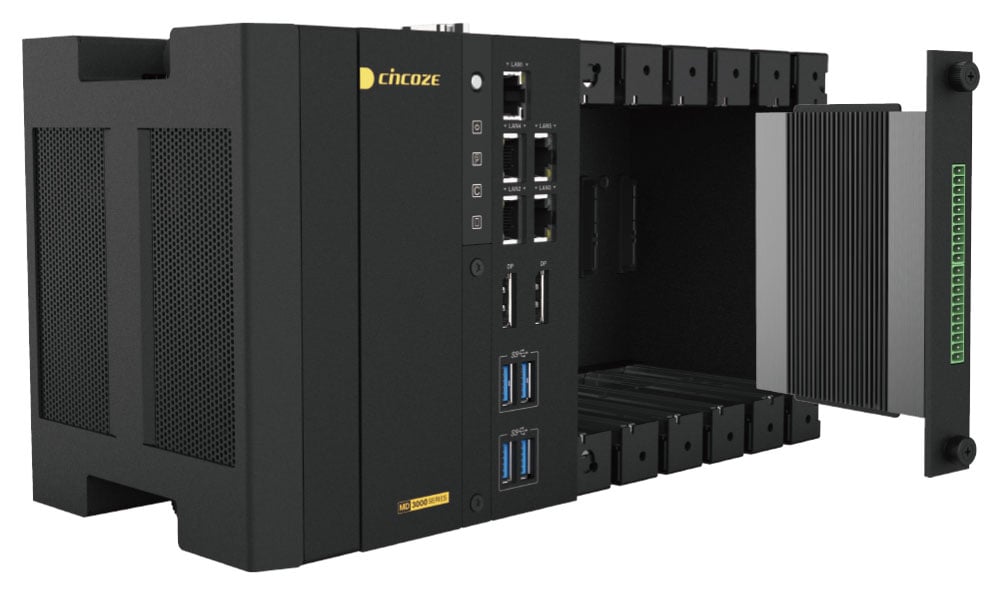

2-, 4-, and 6-slot SEDs support various SEMs for I/O, PoE, M.2 expansion, 2.5” storage, and more. enabling wireless transmission and expanding storage capacity to meet diverse application needs.

Easy to Configure & Plug and Play

Cincoze's SEM modules are flexible and hot-swappable. They feature Guiding Rail Alignment design for easier and faster installation.

Thoughtful installation design

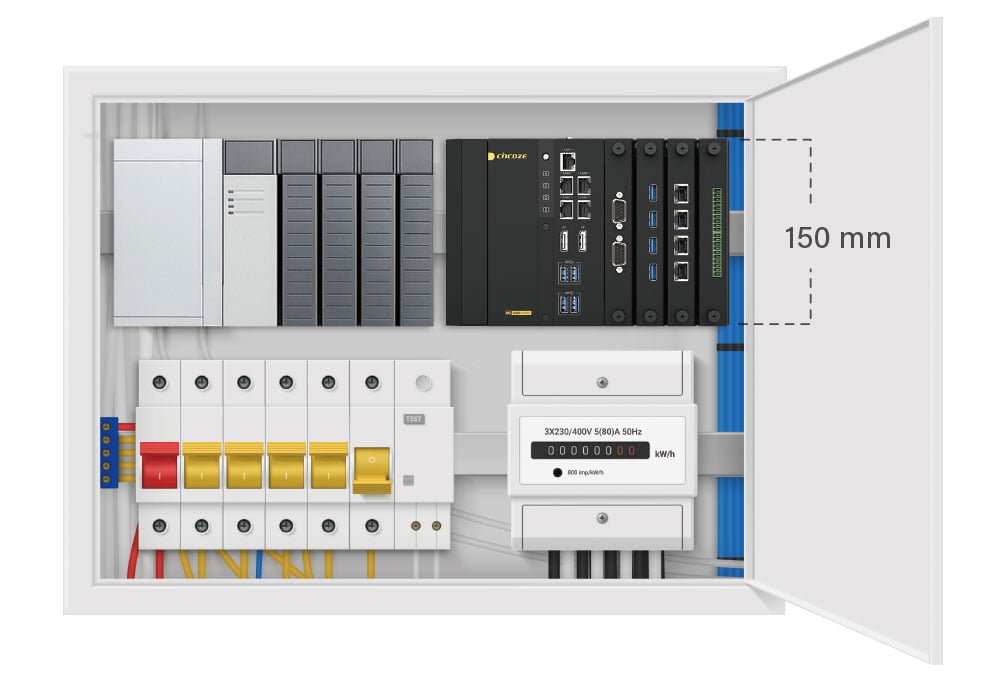

With a compact 150 mm high design, DIN-rail mounting, and all operation interfaces and maintenance areas accessible from the front, it is ideal for cabinet or enclosure installations.

Rugged and reliable

Supports wide temperature (-40°C to 65°C) and voltage (9 – 48 VDC) ranges, and complies with industrial EMC standards (EN 61000-6-2/4), ensuring reliable and stable operation in harsh environments.

Processor
- 14th Generation Intel® Raptor Lake-S Refresh Series CPU:
  - Intel® Core™ i9-14900 24 Cores Up to 5.8 GHz, TDP 65W
  - Intel® Core™ i7-14700 20 Cores Up to 5.4 GHz, TDP 65W
  - Intel® Core™ i3-14100 4 Cores Up to 4.7 GHz, TDP 60W
  - Intel® Core™ i9-14900T 24 Cores Up to 5.5 GHz, TDP 35W
  - Intel® Core™ i7-14700T 20 Cores Up to 5.2 GHz, TDP 35W
  - Intel® Core™ i3-14100T 4 Cores Up to 4.4 GHz, TDP 35W
Memory
- 2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 96GB
  - Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory.
  - Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz.
Graphics Engine
- Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
- Integrated Intel® UHD Graphics 730: Core™ i3
- Integrated Intel® UHD Graphics 710: Pentium®/Celeron®/Intel® Processor
- Maximum Display Output
  - Supports Dual Independent Display
  - Display Port
    - 2x DisplayPort Connector: 4096 x 2304 @ 60Hz
    - * Verified maximum DP resolution: 3840x2160 @ 60Hz
I/O
- LAN
  - 5x GbE LAN, RJ45
  - GbE1: Intel® I219
  - GbE2~5: Intel® I210
- COM
  - 1x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
- USB
  - 4x USB 3.2 Gen1x1 (5Gbps), Type A
Storage / Expansion
- M.2 Key M Socket
  - 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4), Support Storage / Add-on Card Expansion
  - 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA 3.0), Support Storage / Add-on Card Expansion
- Expansion Deck
  - 1x PCIex16 interface for Optional Scalable Expansion Deck
Other Function
- RAID
  - Supports RAID 0/1/5/10
- External FAN Connector 1x External FAN Connector (Support Smart Fan by BIOS)
- Clear CMOS Switch 1x Clear CMOS Switch
- Reset Button 1x Reset Button
- Watchdog Timer Software Programmable, Supports 256 Levels System Reset
- Status LED Indicator
- Power LED
- Storage LED
- Thermal LED
- GPIO LED
- Power Button 1x ATX Power On/Off Button
- Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block
Max Power Consumption
- 35W CPU: 195.2W
- 65W CPU: 279.4W
  - Test conducted with CPU, 1x RAM, and 1x storage
  - 100% load during burn-in testing
- Inrush Current (Peak)
  - 35W CPU: 9.0A@24V
  - 65W CPU: 9.026A@24V
Dimension ( W x D x H ) 135.5 x 132 x 152.2 mm
Weight Information 3.03 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / DIN-RAIL Mount
Physical Design
- Cableless Design
- Jumper-less Design
- Reliability & Protection
- Reverse Power Input Protection Yes
- Over Voltage Protection
  - Protection Range: 51~58V
  - Protection Type: shut down operating voltage, re-power on at the preset level to recover
- Over Current Protection 15A
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF
- 356,683 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System
- Windows®11, Windows®10
- Ubuntu 22.04
Environment
- Operating Temperature
  - 5W TDP Processor: -40°C to 65°C (-40℉ to 149℉)
  - 45W TDP Processor: -40°C to 55°C (-40℉ to 131℉)
  - 65W TDP Processor: -40°C to 45°C (-40℉ to 113℉)
    - PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
    - With external fan, extended temperature peripherals; Ambient with air flow
    - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
- Storage Temperature -40°C to 85°C (-40℉ to 185℉)
- Relative Humidity 95%@65℃
- Shock
  - Operating, 30 Grms, Half-sine 11 ms Duration
    - (w/ External Fan & SSD, according to IEC60068-2-27)
- Vibration
  - Random Vibration: Operating, 3 Grms, 5-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-64)
  - Sinusoidal Vibration: Operating, 1 Grms, 10-500 Hz, 3 Axes
  - (w/ External Fan & SSD, according to IEC60068-2-6)
EMC
- CE, UKCA, FCC, ICES-003 Class A
EMI
- CISPR 32 Conducted & Radiated: Class A
- EN/BS EN 55032 Conducted & Radiated: Class A
- EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
- EN/BS EN61000-3-3 Voltage fluctuations & flicker
- FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
- EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
- EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
- EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
- EN/IEC 61000-4-6 CS: 10V
- EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
- EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment
- EMC
  - EN/BS/IEC 61000-6-4: 2019 Class A
  - EN/BS/IEC 61000-6-2: 2019
Safety
- UL, cUL, CB, IEC, EN 62368-1
